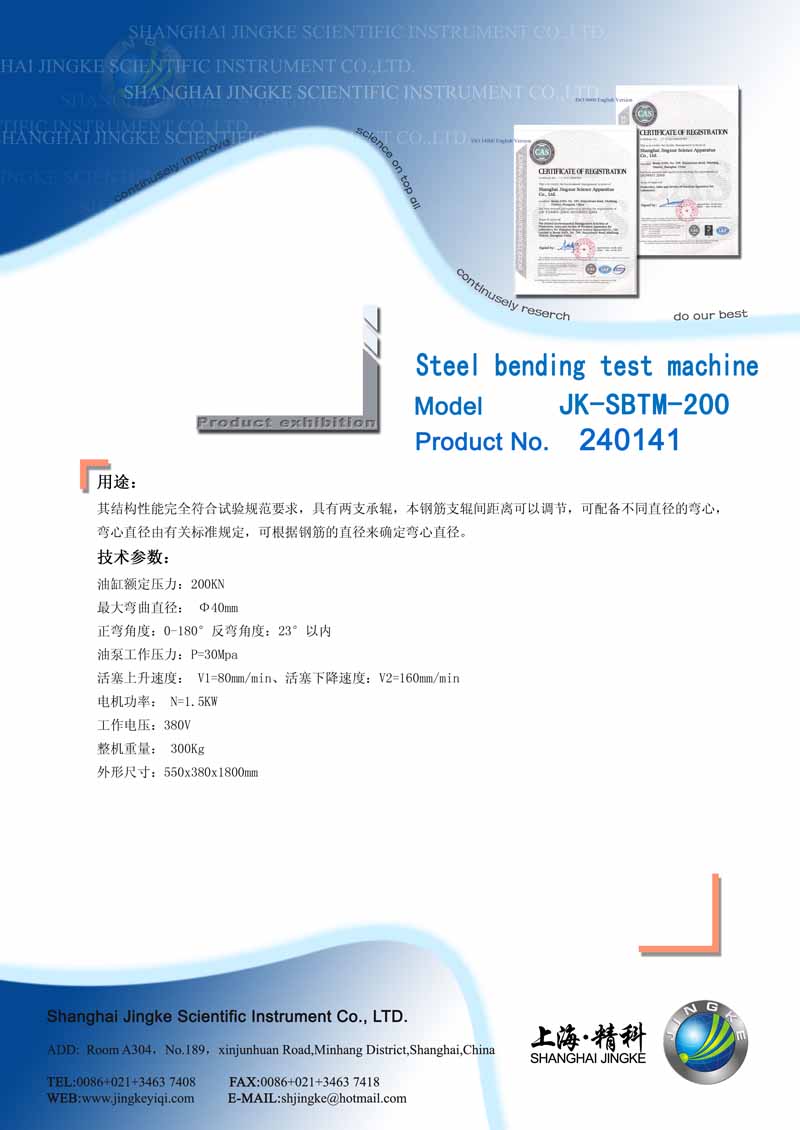

Product name: | JK-SBTM-200 Steel bending test machine |
| Model: | JK-SBTM-200 | |
| NO: | 240141 | |
| Price(FOB): | us$3700 Order Order Contract Template | |
| Related Products: | ||
|
450*350*120 Injection test mold 100mm Cube moulds for concrete 150mm Cube moulds for concrete 40*40*40 Cement test mold |
||
| Detailed |
It’s structural behaviour completely meets the experiment requirements.It has two roller bearings,the distance can be adjusted and equipped with different flexual centers with different diameters,the diameter of flexual center is ruled according to related standards and can be determined by the diameter of the determine Technical parameters Rated pressure of hydro-cylinder：200KN Maximum bending diameter: ： Φ40mm Angle of positive bending：0-180° angle of negative bending：within 23° Working pressure of oil pump：P=30Mpa Speed going up of piston： V1=80mm/min speed going down of piston：V2=160mm/min Motor power： N=1.5KW Working voltage：380V Total weight: ： 300Kg Dimensions: 550x380x1800mm
|
