View Large Image Product catalogue	Product name:	JK-CTB-1 Constant-Temp Heating Bath

	Model:	JK-CTB-1

	NO:	140505

	Price(FOB):	US$248 Order Order Contract Template

	Related Products:
		JK-CTB-185SP Constant-Temp Heating Bath JK-CTB-180SP Constant-Temp Heating Bath JK-CTB-180P Constant-Temp Heating Bath JK-SWB-601 Super water bath

Detailed

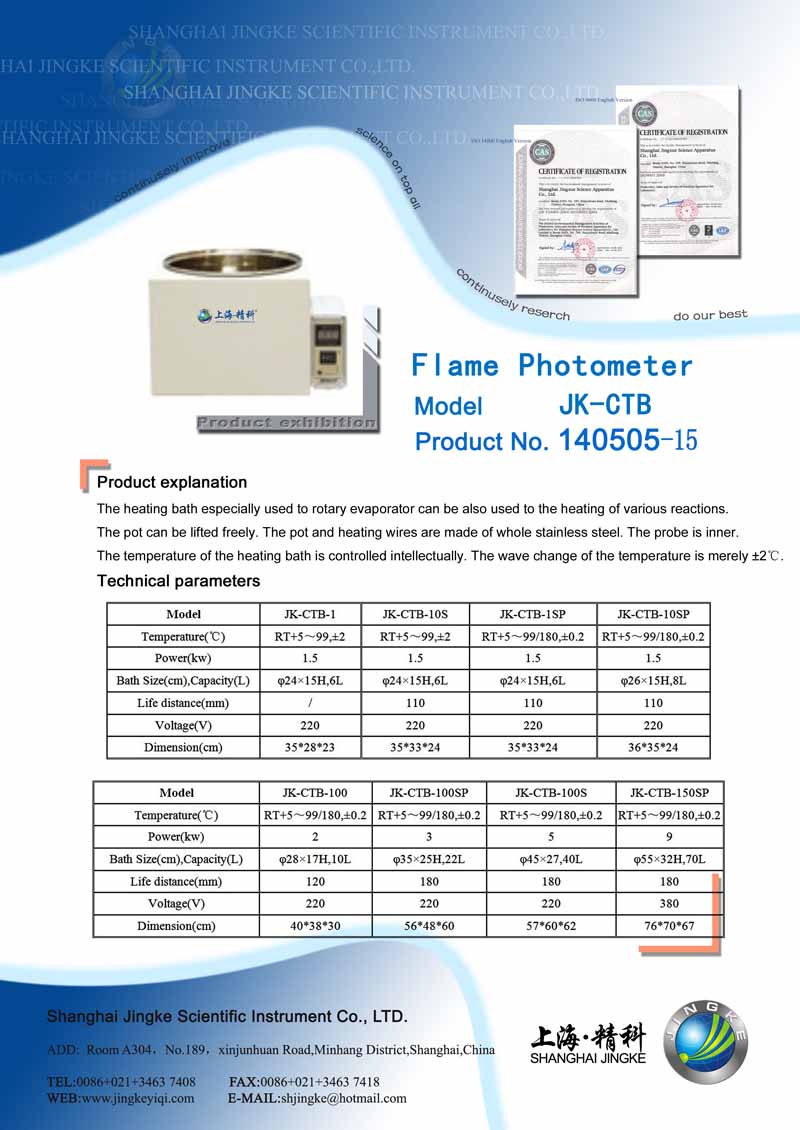

Constant-Temp Heating Bath

Product explanation

The heating bath especially used to rotary evaporator can be also used to the heating of various reactions.
The pot can be lifted freely. The pot and heating wires are made of whole stainless steel. The probe is inner.
The temperature of the heating bath is controlled intellectually. The wave change of the temperature is merely ±2℃.

Technical parameters

Model	JK-CTB-1	JK-CTB-10S	JK-CTB-1SP	JK-CTB-10SP
Temperature(℃)	RT+5～99,±2	RT+5～99,±2	RT+5～99/180,±0.2	RT+5～99/180,±0.2
Power(kw)	1.5	1.5	1.5	1.5
Bath Size(cm),Capacity(L)	φ24×15H,6L	φ24×15H,6L	φ24×15H,6L	φ26×15H,8L
Life distance(mm)	/	110	110	110
Voltage(V)	220	220	220	220
Dimension(cm)	352823	353324	353324	363524

Model	JK-CTB-100	JK-CTB-100SP	JK-CTB-100S	JK-CTB-150SP
Temperature(℃)	RT+5～99/180,±0.2	RT+5～99/180,±0.2	RT+5～99/180,±0.2	RT+5～99/180,±0.2
Power(kw)	2	3	5	9
Bath Size(cm),Capacity(L)	φ28×17H,10L	φ35×25H,22L	φ45×27,40L	φ55×32H,70L
Life distance(mm)	120	180	180	180
Voltage(V)	220	220	220	380
Dimension(cm)	403830	564860	576062	767067

*The minimum temperature for using is +5℃
