Product name: | JK-AAS-4520TF Atomic Absorbtion Spectrophotometer |
| Model: | JK-AAS-4520TF | |
| NO: | 010307 | |
| Price(FOB): | US$9313 Order Order Contract Template | |
| Related Products: | ||
|
Automatic sampler JK-HG-103 Hydride Generator JK-AWH-II Automatic Headspace Sampler JK-AAS-320N Atomic Absorption Spectrophotometer |
||
| Detailed |

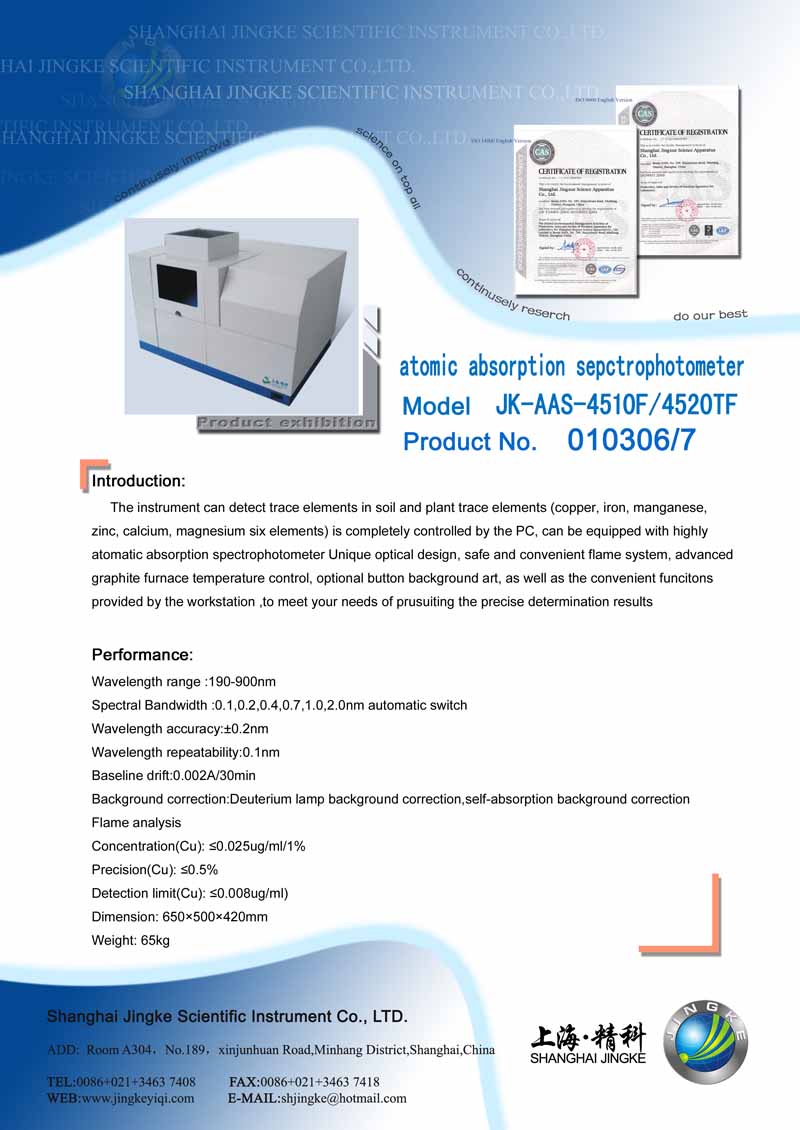

JK-AAS-4520TF Atomic Absorbtion Spectrophotometer Main characteristics: Unique light path design Reliable flame safety system Automatic six-lamp turret system Small flame structure analysis system Multi-Functional software working station Micro-computer automatically control operation system Multi-functional flame atomic system High efficent and sensitive stomic system Integrated suspension shock absorbers optical platform: increase the seismic resistent capacity of the optical system, reduce the mechanical deformation caused by temperature influencing the optical system.It can remain stable even if the long-term use of optical signals Small flame structure analysis system, automatic six-lamp turret system Analyse multi-element simultaneously, greatly enchance the efficiency. And multi-element can be freely combined according to users’ needs. To the various measured elements ina sample, can measure one by one in order according to the method set Maintain the advantages of flame AAS Low-cost(compared with the ICP) Small size Easy operation safe and reliable Rapid analysis- 4-6 elements analysed within one minute(close to ICP-AES) Rapidly analyse multi element, sample in a multi-element group,results come out simultaneously According to needs of analysis, multiple elements can be freely combinated Save the amount of sample Gas flow can te fast and accurately set Unique optical design, greatly increased the sensitivity of UV With it`s cotstanding mechanical and optical systems and excellent software ensure the accuracy of measurement Stable,wide measuring range,low detection limit,high resolution,high sensitivity. Extended dynamic range Rapid reproducible wavelength Gas flow can te fast and accurately set With CCD,accurate wavelength positioning High-speed rotating grating, rapid rotation slit, elements light Accurately locate and optimize the wavelength in a very short time Speed gas control system like pneumatic hammer (ms-speed) All gas flow through the software accurately reproduce Introduction: The instrument can detect trace elements in soil and plant trace elements (copper, iron, manganese, zinc, calcium, magnesium six elements) is completely controlled by the PC, can be equipped with highly atomatic absorption spectrophotometer Unique optical design, safe and convenient flame system, advanced graphite furnace temperature control, optional button background art, as well as the convenient funcitons provided by the workstation ,to meet your needs of prusuiting the precise determination results Performance: Wavelength range :190-900nm Spectral Bandwidth :0.1,0.2,0.4,0.7,1.0,2.0nm automatic switch Wavelength accuracy:±0.2nm Wavelength repeatability:0.1nm Baseline drift:0.002A/30min Background correction:Deuterium lamp background correction,self-absorption background correction Flame analysis Concentration(Cu): ≤0.025ug/ml/1% Precision(Cu): ≤0.5% Detection limit(Cu): ≤0.008ug/ml) Dimension: 650×500×420mm Weight: 65kg
THIS PRODUCT CAN BE OEM Has been assessed and registered as meeting the requirements of ISO9001:2008 Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004 China’s quality reliable products Chinese famous brand.
Optional: graphite furnace Price: US$6500 |
