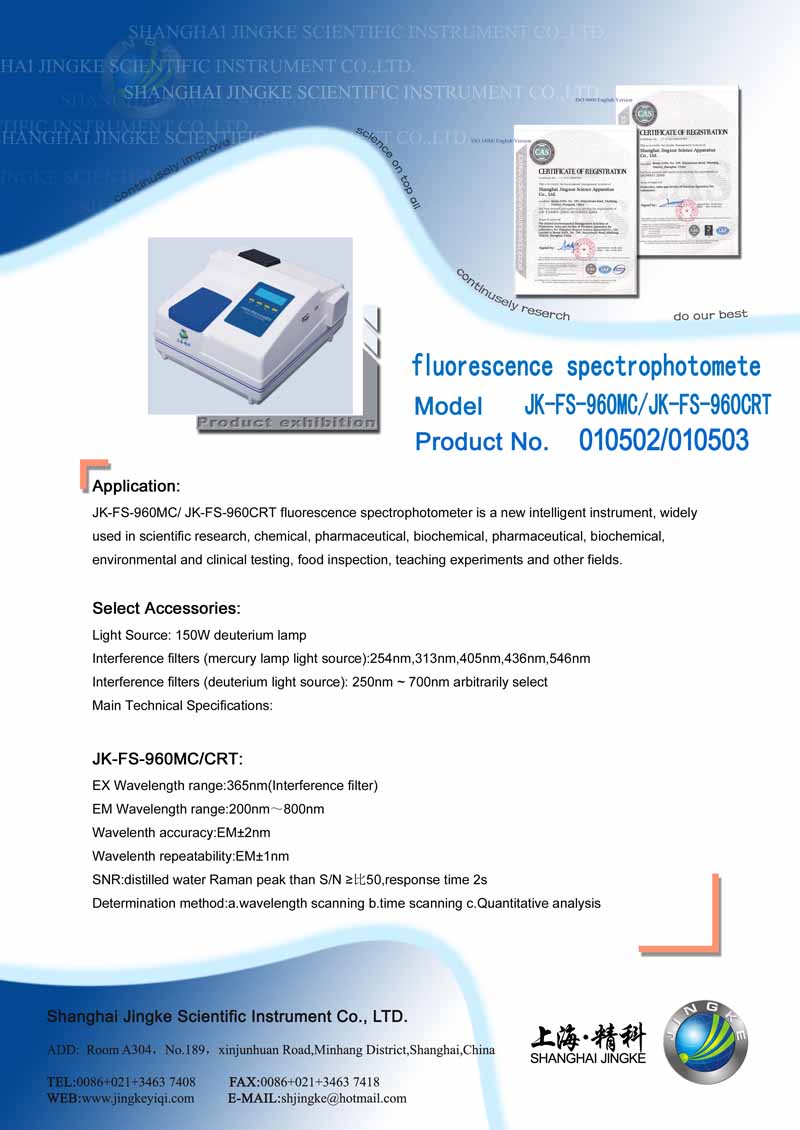

JK-FS-960MC fluorescence spectrophotomete

Application:

960MC/960CRT fluorescence spectrophotometer is a new intelligent instrument, widely used in scientific research, chemical, pharmaceutical, biochemical, pharmaceutical, biochemical, environmental and clinical testing, food inspection, teaching experiments and other fields.

Common characteristics:

Emission monochromator use 1200L/nm concave grating. Large aperture aspherical mirror, the sensitivity is particularly high.

1500W large power mercury lamps, strong excitation

Uses light source monitoring technology, measuring results are stable.

Photomultiplier tubes are high performance, has the best signal to noise ratio.

With self-diagnostic function, reliable work.

EM bandwidth is less than 10nm

960CRT type of characteristics:

With Windows95 computer workstation, less equipment failure,good reliability.

Workstation uses the Chinese dialog window, easy to operate.

Can comfortably perform the scanning determination, quantitative analysis,calculate,tabulate and record with the mouse.

Select Accessories:

Light Source: 150W deuterium lamp

Interference filters (mercury lamp light source):254nm,313nm,405nm,436nm,546nm

Interference filters (deuterium light source): 250nm ~ 700nm arbitrarily select

Main Technical Specifications:

960MC/CRT:
EX Wavelength range:365nm(Interference filter)

EM Wavelength range:200nm～800nm

Wavelenth accuracy:EM±2nm

Wavelenth repeatability:EM±1nm

SNR:distilled water Raman peak than S/N ≥比50,response time 2s

Determination method:a.wavelength scanning b.time scanning c.Quantitative analysis

960CRT with computer
Spectral processing:
Continuous scan measurement:1-4 first derivative spectra; calculating peak area; peak retrieval; mapping operations; map window treatment; map store and recall; map printout.

Quantitative Analysis:
Quantitative analyze samples;time scanning;draw standard curve (1-3 times); the concentration of direct reading;automatic measurement of S/N and stability;automatic background subtraction; quantitative analysis,print out.

THIS PRODUCT CAN BE OEM

Has been assessed and registered as meeting the requirements of ISO9001:2008

Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004

China’s quality reliable products

Chinese famous brand.
