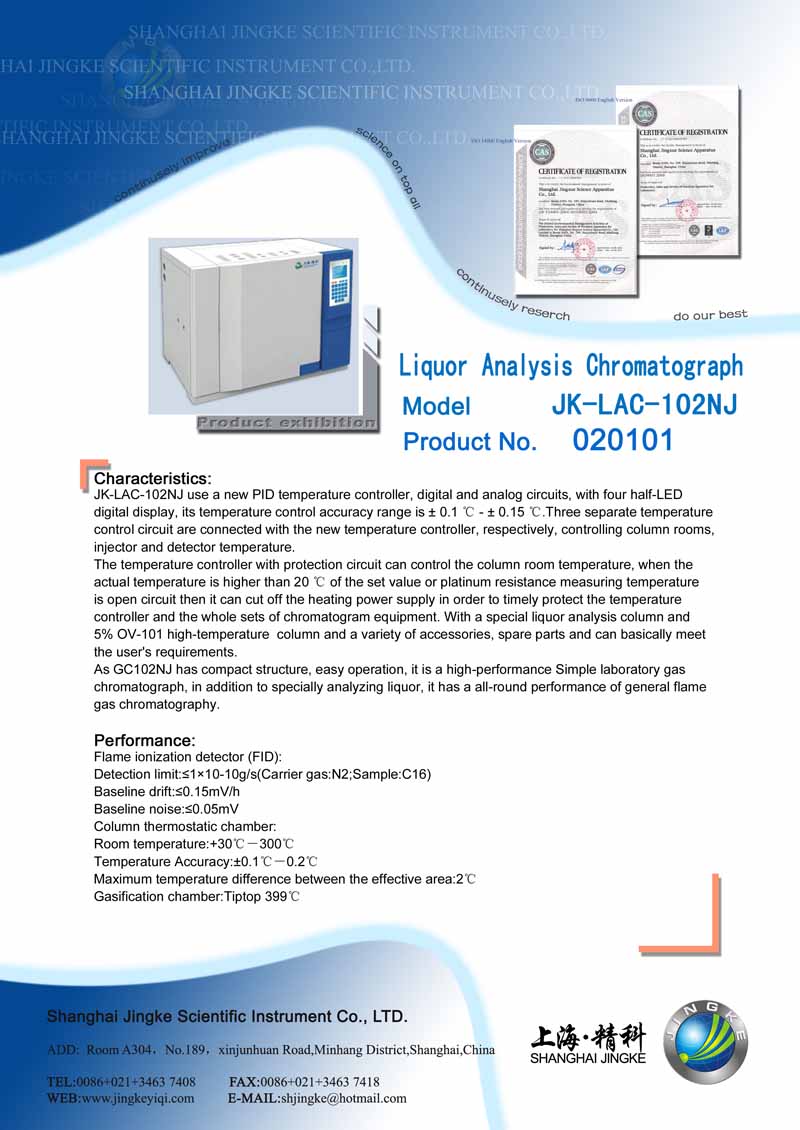

JK-LAC-102NJ Liquor Analysis Chromatograph

Characteristics:

GC102NJ use a new PID temperature controller, digital and analog circuits, with four half-LED digital display, its temperature control accuracy range is ± 0.1 ℃ - ± 0.15 ℃.Three separate temperature control circuit are connected with the new temperature controller, respectively, controlling column rooms, injector and detector temperature.

The temperature controller with protection circuit can control the column room temperature, when the actual temperature is higher than 20 ℃ of the set value or platinum resistance measuring temperature is open circuit then it can cut off the heating power supply in order to timely protect the temperature controller and the whole sets of chromatogram equipment. With a special liquor analysis column and 5% OV-101 high-temperature  column and a variety of accessories, spare parts and can basically meet the user's requirements.

As GC102NJ has compact structure, easy operation, it is a high-performance Simple laboratory gas chromatograph, in addition to specially analyzing liquor, it has a all-round performance of general flame gas chromatography.

Performance:

Flame ionization detector (FID):

Detection limit:≤1×10^-10g/s(Carrier gas:N₂;Sample:C₁₆)
Baseline drift:≤0.15mV/h
Baseline noise:≤0.05mV

Column thermostatic chamber:

Room temperature:+30℃－300℃
Temperature Accuracy:±0.1℃－0.2℃
Maximum temperature difference between the effective area:2℃
Gasification chamber:Tiptop 399℃
