Product name: | JK-LCFC-12L Large capacity freeze centrifuge |
| Model: | JK-LCFC-12L | |
| NO: | 101006 | |
| Price(FOB): | US$25133 Order Order Contract Template | |
| Related Products: | ||
|
JK-MC-200 Mini Table Centrifuge JK-MC-121 Mini Table Centrifuge JK-CTCM-385 Oil Centrifuge JK-CTCM-385 Oil Centrifuge |
||
| Detailed |

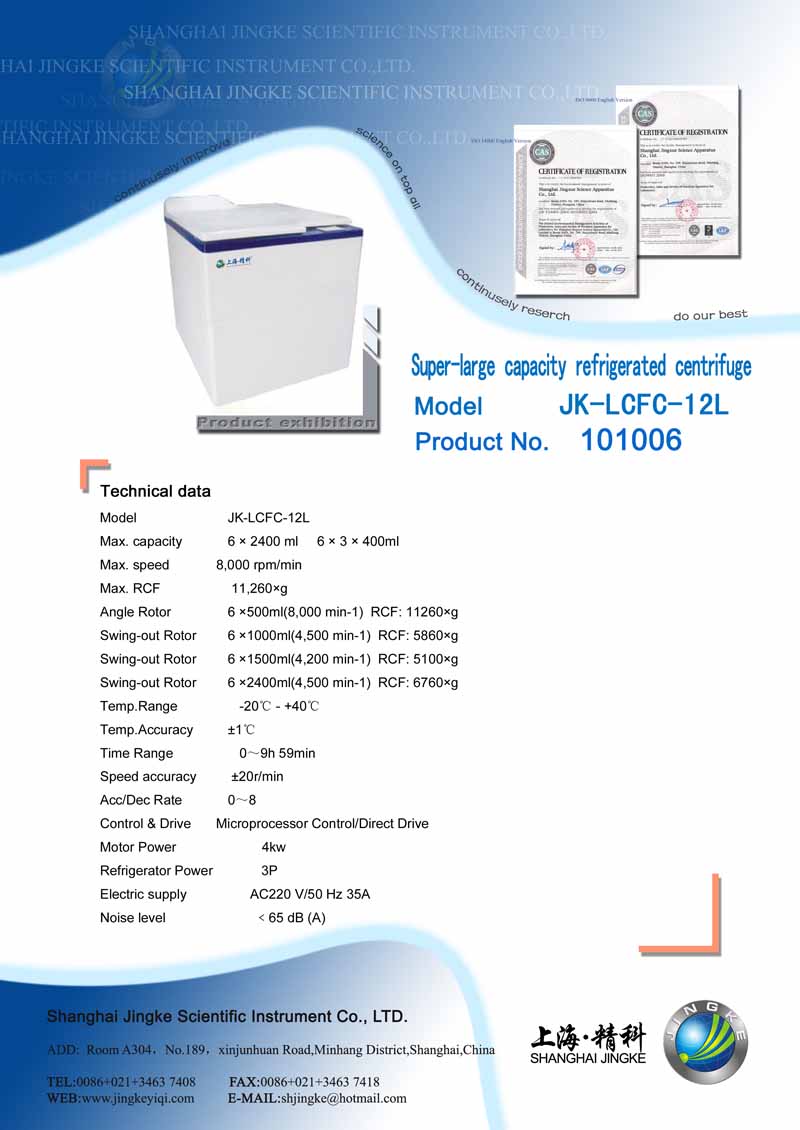

JK-LCFC-12L Super-large capacity refrigerated centrifuge
Features:
• Super-large capacity refrigerated floor standing centrifuge for universal use in blood banks, clinical laboratories and research
• Capacity up to 6 x 2400ml or 18 blood bags(400ml) • Solid construction, suitable for continous use Maintenance-free drive, high imbalance tolerance up to approx. 80 g • Automatic rotor identification prevents spinning rotors overspeed • Efficient refrigeration; temperature adjustable between -20 °C and +40 °C, standstill cooling, with refrigerant R404a • Stainless steel chamber ; The lid is hinged on the left hand side ; Easy open the centrifuge lid via pneumatic springs ; Two motorized lid locks provide safe, assured lid-locking • Power failure, emergency lid opening • Ergonomic loading height of just 90 cm ; the centrifuge stands on movable castors an adjustable feet to even out the floor , Easily serviceable • All international standards are met, e.g. IEC 1010, CE, WEEE • All important run parameters at a glance ; Permanent display of set and actual values: time, speed, gravitational field and temperature • Time 0 - 99 h 59 min, continuous operation, short run • Run time and cycles count for the rotors used • 9 linear, 9 quadratic and 8 user defined acceleration an deceleration curves including brakeless deceleration • Electronic imbalance monitoring, acoustic and visual alarm with fast deceleration, end of run alarm, selectable, can be switched of plain text display of information an error messages Technical data
Model JK-LCFC-12L Max. capacity 6 × 2400 ml 6 × 3 × 400ml Max. speed 8,000 rpm/min Max. RCF 11,260×g Angle Rotor 6 ×500ml(8,000 min-1) RCF: 11260×g Swing-out Rotor 6 ×1000ml(4,500 min-1) RCF: 5860×g Swing-out Rotor 6 ×1500ml(4,200 min-1) RCF: 5100×g Swing-out Rotor 6 ×2400ml(4,500 min-1) RCF: 6760×g Temp.Range -20℃ - +40℃ Temp.Accuracy ±1℃ Time Range 0～9h 59min Speed accuracy ±20r/min Acc/Dec Rate 0～8 Control & Drive Microprocessor Control/Direct Drive Motor Power 4kw Refrigerator Power 3P Electric supply AC220 V/50 Hz 35A Noise level ﹤65 dB (A) Dimensions [L × W × H] 860 × 960 × 1200 mm Weight 500 kg Fitting:
Swing-out Rotor:6×2400ml（4,600r/min） RCF:7,060×g |
