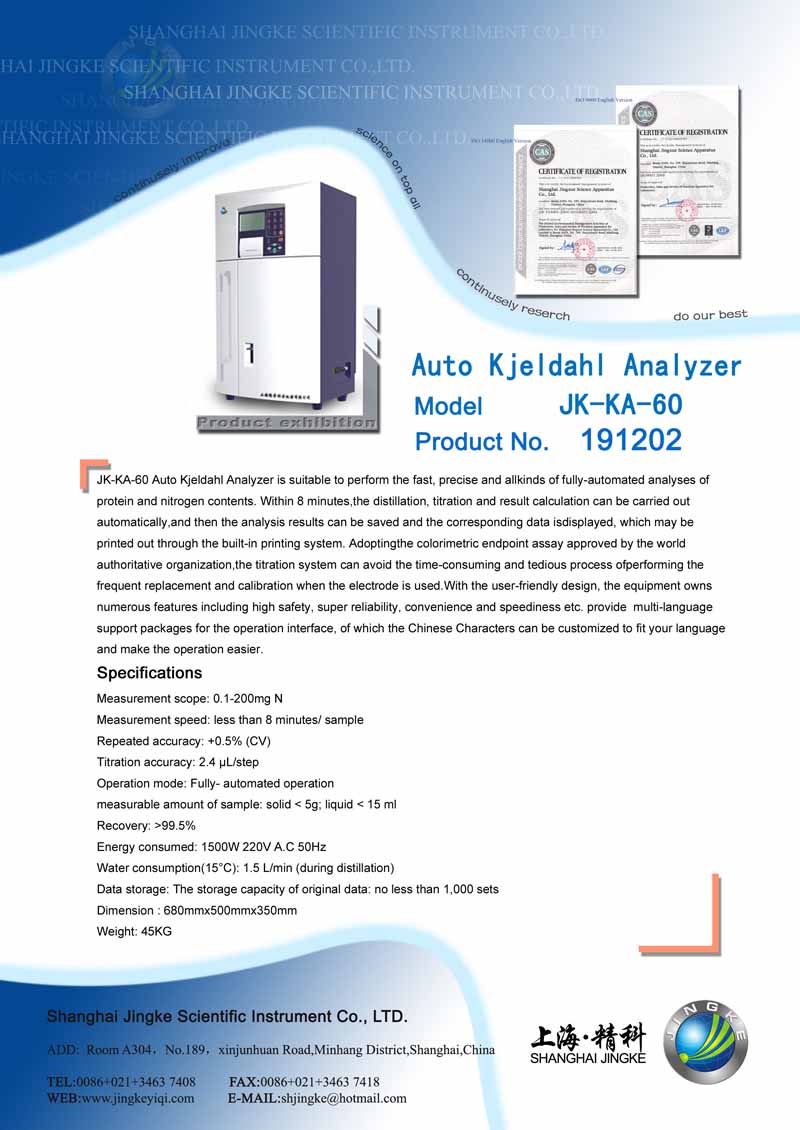

JK-KA-60 Auto Kjeldahl Analyzer

JK-KA-60 Auto Kjeldahl Analyzer is suitable to perform the fast, precise and allkinds of fully-automated analyses of protein and nitrogen contents. Within 8 minutes,the distillation, titration and result calculation can be carried out automatically,and then the analysis results can be saved and the corresponding data isdisplayed, which may be printed out through the built-in printing system. Adoptingthe colorimetric endpoint assay approved by the world authoritative organization,the titration system can avoid the time-consuming and tedious process ofperforming the frequent replacement and calibration when the electrode is used.With the user-friendly design, the equipment owns numerous features including high safety, super reliability, convenience and speediness etc. provide  multi-language support packages for the operation interface, of which the Chinese Characters can be customized to fit your language and make the operation easier.

Feature
○ User-friendly design: The intelligence of can be seen in every detail in the equipment and the user-friendly design can make the operation more comfortable.
○ Various designs for safety: various safety devices to protect the operators comprehensively.
○ Top quality materials bring the top-quality products: The high-quality anticorrosion materials are adopted, the maintenance fee is reduced and the lifespan of equipment is improved.
○ Fully-automated operation: After the parameters are set, the equipment can carry out the acid input, alkali input, distillation, titration, result calculation, printing-out and so on in the unmanned manner.
○ The authority approved authentication method: The titration method complies with authentication methods such as AOAC, EPA, Din and ISO and the colorimetric titration is the method which is approved by the authority.
○ Fully-sealed pipe system: The compact and fully-sealed design can ensure that no leakage occurs in the distillation process.
○ The distillation and titration can be carried out consecutively: These two steps can be finished at one time to save some time.
○ The design of solution-holding barrel integrated fully into the equipment:The fully-integrated barrel can make the environment neater. In the inclined barrel, the solution can be digested completely.
○ Software owning multiple language support packages: The software owning multiple language support packages, which can be customized to fit your language; Including the language support package of the simplified Chinese characters.

Specification
Measurement scope: 0.1-200mg N
Measurement speed: less than 8 minutes/ sample
Repeated accuracy: +0.5% (CV)
Titration accuracy: 2.4 μL/step
Operation mode: Fully- automated operation
measurable amount of sample: solid < 5g; liquid < 15 ml
Recovery: >99.5%
Energy consumed: 1500W 220V A.C 50Hz
Water consumption(15°C): 1.5 L/min (during distillation)
Data storage: The storage capacity of original data: no less than 1,000 sets
Dimension : 680mmx500mmx350mm
Weight: 45KG

Option
JK-GBD-520 Graphite Block Digestion System & JK-GBD-403 Waste Processing System
