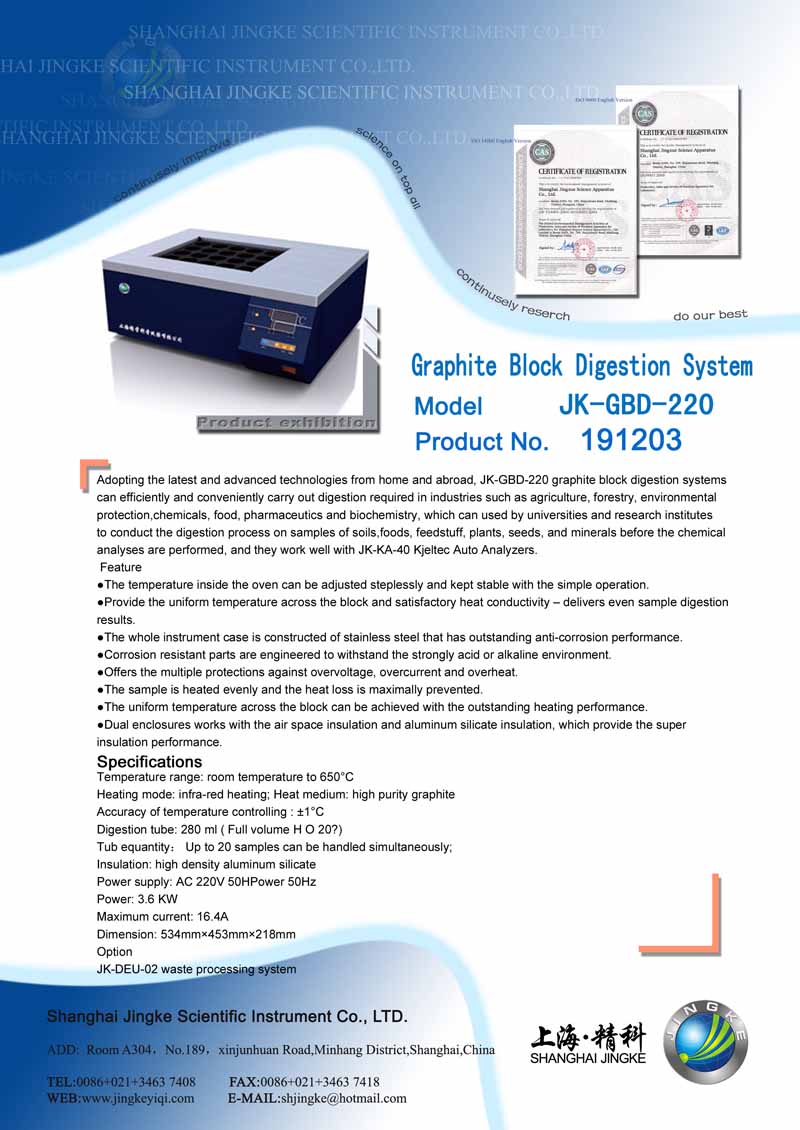

JK-GBD-220 Graphite Block Digestion System

Adopting the latest and advanced technologies from home and abroad, JK-GBD-220 graphite block digestion systems can efficiently and conveniently carry out digestion required in industries such as agriculture, forestry, environmental protection,chemicals, food, pharmaceutics and biochemistry, which can used by universities and research institutes to conduct the digestion process on samples of soils,foods, feedstuff, plants, seeds, and minerals before the chemical analyses are performed, and they work well with JK-KA-40 Kjeltec Auto Analyzers.

 Feature
●The temperature inside the oven can be adjusted steplessly and kept stable with the simple operation.
●Provide the uniform temperature across the block and satisfactory heat conductivity – delivers even sample digestion results.
●The whole instrument case is constructed of stainless steel that has outstanding anti-corrosion performance.
●Corrosion resistant parts are engineered to withstand the strongly acid or alkaline environment.
●Offers the multiple protections against overvoltage, overcurrent and overheat.
●The sample is heated evenly and the heat loss is maximally prevented.
●The uniform temperature across the block can be achieved with the outstanding heating performance.
●Dual enclosures works with the air space insulation and aluminum silicate insulation, which provide the super insulation performance.

Specifications
Temperature range: room temperature to 650°C
Heating mode: infra-red heating; Heat medium: high purity graphite
Accuracy of temperature controlling : ±1°C
Digestion tube: 280 ml ( Full volume H O 20?)
Tub equantity:Up to 20 samples can be handled simultaneously;
Insulation: high density aluminum silicate
Power supply: AC 220V 50HPower 50Hz
Power: 3.6 KW
Maximum current: 16.4A
Dimension: 534mm×453mm×218mm

Option

JK-DEU-02 waste processing system
