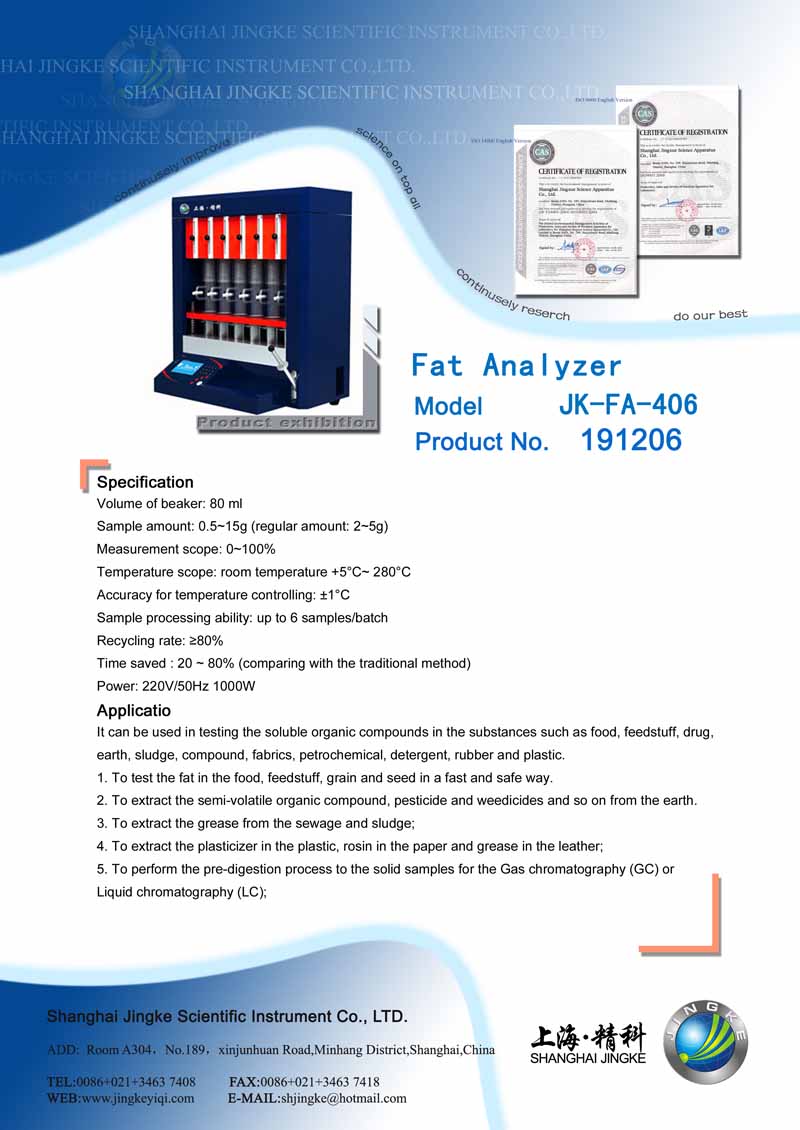

JK-FA-406 Fat Analyzer

Based on the principle of Soxhlet extraction and weighing, the JK-FA-406 fat analyzer is able to perform the multiple functions including soaking, extraction,rinse, heating, condensing and recycling. With the help of the fully-sealed heat block that has the automatic temperature controlling function, the even and reliable heating can be achieved. Up to six samples can be tested simultaneously and no waste gas, waste water and waste residue will be released because of the good insulation performance of the instrument. During the operation, the optimum temperature can be chosen according to boiling points of reagents and room temperature,which is a key element for the fast test. The reagents are also can be recycled, which help to reduce the cost. With one touch, the soaking, extraction and reagent recycling processes can be finished conveniently. One substance can be separated from the solid or semi-solid compound in the short period of time. The well-designed instrument is accurate, easy to handle, and very reliable.

Feature
5.1 inch LCD and controlling system with microprocessor
Intelligent and interactive interface
The integrated heat block brings the wide controlling range of temperature and high accuracy.
The electric circuit and section of extraction operation are completely separated,which improves the liability of whole system.
Both timing and time recording functions are available.
Overheating warning and alarm functions are available.
The audible, visual warning signals as well as the reminding messages on the screen are used in the alarming system. ○The preset temperature, actual temperature and heating time can be displayed simultaneously on the screen.
The elevation connection using the transmission technique of the linear bearing brings the flexible elevating operation.
With the unique air space insulation technique, the temperature of instrument’s case can be kept normal.

Specification
Volume of beaker: 80 ml
Sample amount: 0.5~15g (regular amount: 2~5g)
Measurement scope: 0~100%
Temperature scope: room temperature +5°C~ 280°C
Accuracy for temperature controlling: ±1°C
Sample processing ability: up to 6 samples/batch
Recycling rate: ≥80%
Time saved : 20 ~ 80% (comparing with the traditional method)
Power: 220V/50Hz 1000W

Applicatio
It can be used in testing the soluble organic compounds in the substances such as food, feedstuff, drug,earth, sludge, compound, fabrics, petrochemical, detergent, rubber and plastic.
1. To test the fat in the food, feedstuff, grain and seed in a fast and safe way.
2. To extract the semi-volatile organic compound, pesticide and weedicides and so on from the earth.
3. To extract the grease from the sewage and sludge;
4. To extract the plasticizer in the plastic, rosin in the paper and grease in the leather;
5. To perform the pre-digestion process to the solid samples for the Gas chromatography (GC) or
Liquid chromatography (LC);
