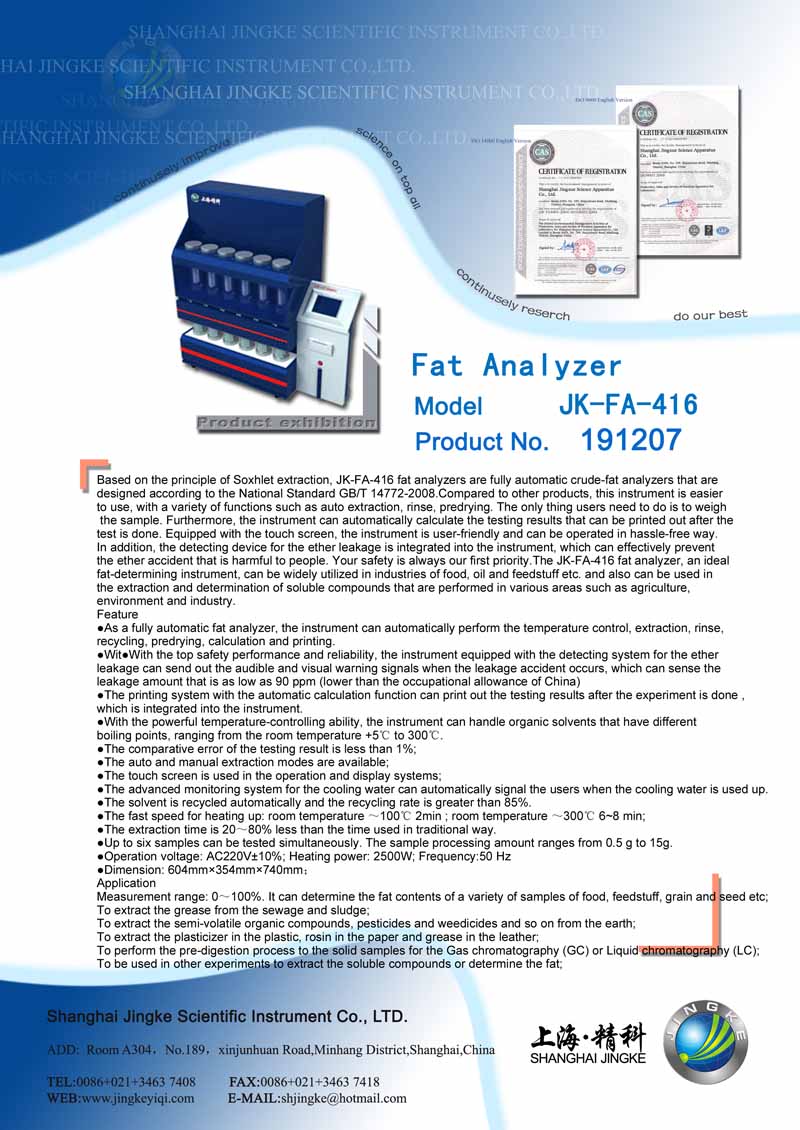

JK-FA-416 Fat Analyzer

Based on the principle of Soxhlet extraction, JK-FA-416 fat analyzers are fully automatic crude-fat analyzers that are designed according to the National Standard GB/T 14772-2008.Compared to other products, this instrument is easier to use, with a variety of functions such as auto extraction, rinse, predrying. The only thing users need to do is to weigh the sample. Furthermore, the instrument can automatically calculate the testing results that can be printed out after the test is done. Equipped with the touch screen, the instrument is user-friendly and can be operated in hassle-free way. In addition, the detecting device for the ether leakage is integrated into the instrument, which can effectively prevent the ether accident that is harmful to people. Your safety is always our first priority.The JK-FA-416 fat analyzer, an ideal fat-determining instrument, can be widely utilized in industries of food, oil and feedstuff etc. and also can be used in the extraction and determination of soluble compounds that are performed in various areas such as agriculture, environment and industry.

Feature
As a fully automatic fat analyzer, the instrument can automatically perform the temperature control, extraction, rinse, recycling, predrying, calculation and printing.
WithWith the top safety performance and reliability, the instrument equipped with the detecting system for the ether leakage can send out the audible and visual warning signals when the leakage accident occurs, which can sense the leakage amount that is as low as 90 ppm (lower than the occupational allowance of China)
The printing system with the automatic calculation function can print out the testing results after the experiment is done , which is integrated into the instrument.
With the powerful temperature-controlling ability, the instrument can handle organic solvents that have different boiling points, ranging from the room temperature +5℃ to 300℃.
The comparative error of the testing result is less than 1%;
The auto and manual extraction modes are available;
The touch screen is used in the operation and display systems;
The advanced monitoring system for the cooling water can automatically signal the users when the cooling water is used up.
The solvent is recycled automatically and the recycling rate is greater than 85%.
The fast speed for heating up: room temperature ～100℃ 2min ; room temperature ～300℃ 6~8 min;
The extraction time is 20～80% less than the time used in traditional way.
Up to six samples can be tested simultaneously. The sample processing amount ranges from 0.5 g to 15g.
Operation voltage: AC220V±10%; Heating power: 2500W; Frequency:50 Hz
Dimension: 604mm×354mm×740mm;
Application
Measurement range: 0～100%. It can determine the fat contents of a variety of samples of food, feedstuff, grain and seed etc;
To extract the grease from the sewage and sludge;
To extract the semi-volatile organic compounds, pesticides and weedicides and so on from the earth;
To extract the plasticizer in the plastic, rosin in the paper and grease in the leather;
To perform the pre-digestion process to the solid samples for the Gas chromatography (GC) or Liquid chromatography (LC);
To be used in other experiments to extract the soluble compounds or determine the fat;
