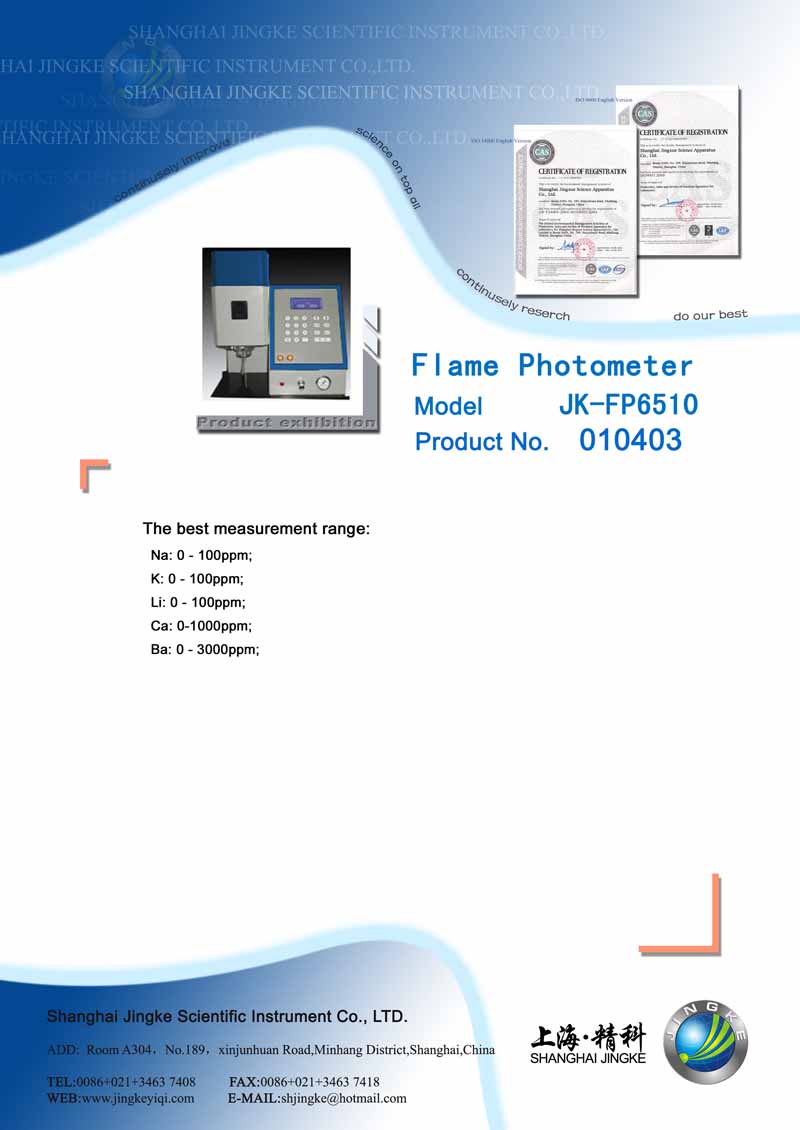

JK-FP6510  Flame Photometer

1, Application：

Analytic cement, glass, ceramics and refractoriness

Analytic the fertilizer in agricultural land surveys and soil

Analytic and monitor pharmaceutical industry, food industry

determine the content of potassium and sodium in Medical clinic on human serum and urine

2, Performance:

Accepted components: silicon photovoltaic cells

Spectrophotometric method: interference filter

Display: LCD display

Stability: Show the maximum variation ≤ 3 ℅ in 15s with the injection of standard solution. Measure 6 times with one sample per minute. the maximum variation of the relative value is ≤ 15 ℅

Repeatability: ≤ 3 ℅

Linear Error: K: ≤ 0.005mmol / L

Na: ≤ 0.03mmol / L

Response time: <8s

Spray volume of the sample absorption: <6mL/min

Measurement Range:

Na: 0 - 100ppm; K: 0 - 100ppm; Li: 0 - 100ppm; Ca :0-1000ppm;

Ba: 0 - 3000ppm;

Detection limit:

Na: 0.01ppm; K: 0.01ppm; Li: 0.025ppm; Ca: 0.1ppm;

Ba: 10ppm;

3,Structural features of the instrument:

      1) with Na, K, Li, Ca, Ba five filters, 5-channel detection; can detect 3 elements and in  display simultaneously;

      2) touch panel with the number keys;

      3) single-point calibration; instrument calibration curve can be stored;

      4) RS232 interface; can connect a computer or printer;

      5) with a moisture separator;

4, Operation environment:

a) Ambient temperature: +10 ℃ ~ +35 ℃;

b) Relative humidity: ≤ 85%;

c) instrument should be placed on the table without vibration, avoiding direct exposure to bright light without a strong electric and magnetic interference, airstream, no effect on of vibration;

d) operating site should not be flammable, explosive, corrosive gas, and equipped with fire fighting facilities;

e) Voltage :220V ± 22V, frequency: 50Hz ± 1Hz,

f) power is 250W.

g) should use impurities, and stable combustion of liquefied petroleum gas or propane

volume, weight, set

Volume: 440 × 310 × 500mm

Weight: 12.5Kg

Complete Set: Includes the host, air compressor, spare parts and other accessories
