Product name: | JK-DT-536C Petroleum Products Distillation Tester (Low Temperature Single Unit) |
| Model: | JK-DT-536C | |
| NO: | 280136 | |
| Price(FOB): | US$1700 Order Order Contract Template | |
| Related Products: | ||
|
JK-GOST-18 Gasoline Oxidation Stability Tester JK-EGT-19 Existent Gum Tester(Jet Evaporation Method) JK-PWCT-54 Petroleum Wax Oil Content Tester JK-CPST-32 Crude Petroleum and Petroleum Products Salt Content Tester |
||
| Detailed |

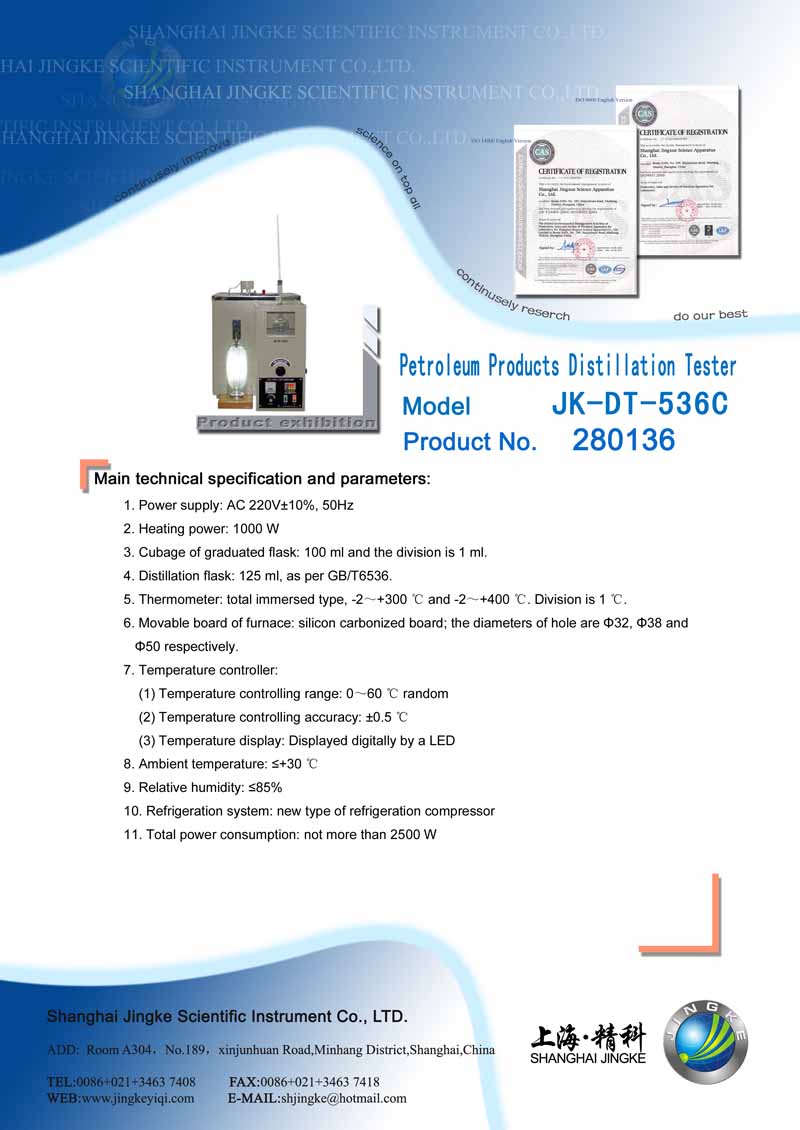

JK-DT Purpose: The instrument is designed and made as per the National Standard of People’s Instrument characteristics: 1. Adopt a refrigeration compressor to control the temperature of condenser, it can set and control the temperature of the condenser conveniently. 2. The heating wires are sealed in the quartz glass tubes, so there is no flame. It is safe and it can be used for a long time. 3. The height of the furnace can be adjusted using a knob, so the distillation flask can be located in a proper position. 4. The heating power can be regulated from low to high continuously by the heat adjust knob. The current can be indicated on the ampere meter. Main technical specification and parameters: 1. Power supply: AC 220V±10%, 50Hz 2. Heating power: 1000 W 3. Cubage of graduated flask: 100 ml and the division is 1 ml. 4. Distillation flask: 125 ml, as per GB/T6536. 5. Thermometer: total immersed type, -2～+ 6. Movable board of furnace: silicon carbonized board; the diameters of hole are Φ32, Φ38 and Φ50 respectively. 7. Temperature controller: (1) Temperature controlling range: 0～ (2) Temperature controlling accuracy: ± (3) Temperature display: Displayed digitally by a LED 8. Ambient temperature: ≤+ 9. Relative humidity: ≤85% 10. Refrigeration system: new type of refrigeration compressor 11. Total power consumption: not more than 2500 W
|
