It is approved by YY0569 in Chinese SFDA and Class II, Type B2 Biological Safety Cabinet in American NSF/ANSI49.
The vertical lamina airflow has the patterns of 100% air exhaust to the outdoor or to the air exhaust system.
V notch and humanized design of the shelf can make sure the protection of negative pressure and alleviate working tiredness.
The air supply and exhaust pipelines adopt PDI Control Valve with BELIMO Actuator, which can effectively reduce air disturb from the outside.
Detached type makes it easy for transportation and location.

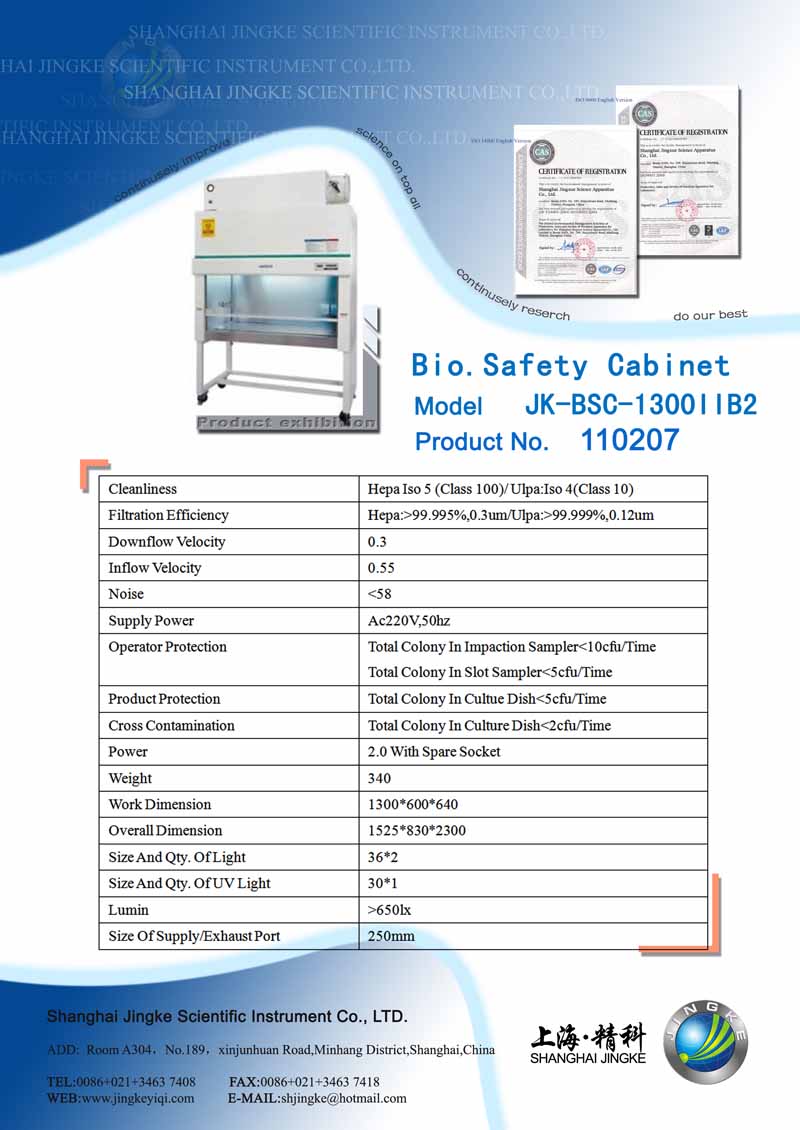

Technical parameters:
|
Cleanliness
|
Hepa Iso 5 (Class 100)/ Ulpa:Iso 4(Class 10)
|
|
Filtration Efficiency
|
Hepa:>99.995%,0.3um/Ulpa:>99.999%,0.12um
|
|
Downflow Velocity
|
0.3
|
|
Inflow Velocity
|
0.55
|
|
Noise
|
<58
|
|
Supply Power
|
Ac220V,50hz
|
|
Operator Protection
|
Total Colony In Impaction Sampler<10cfu/Time
Total Colony In Slot Sampler<5cfu/Time
|
|
Product Protection
|
Total Colony In Cultue Dish<5cfu/Time
|
|
Cross Contamination
|
Total Colony In Culture Dish<2cfu/Time
|
|
Power
|
2.0 With Spare Socket
|
|
Weight
|
340
|
|
Work Dimension
|
1300*600*640
|
|
Overall Dimension
|
1525*830*2300
|
|
Size And Qty. Of Light
|
36*2
|
|
Size And Qty. Of UV Light
|
30*1
|
|
Lumin
|
>650lx
|
|
Size Of Supply/Exhaust Port
|
250mm
|
|
