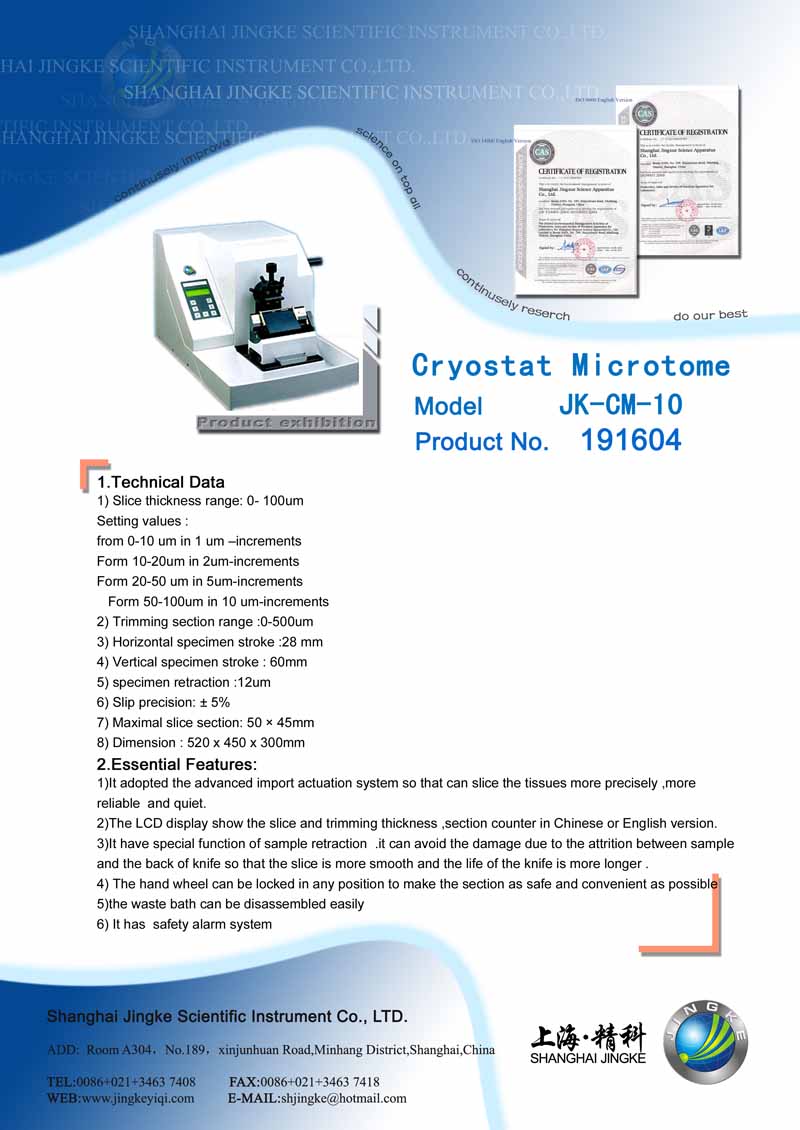

1.Technical Data

1) Slice thickness range: 0- 100um

Setting values :

from 0-10 um in 1 um –increments

Form 10-20um in 2um-increments

Form 20-50 um in 5um-increments

   Form 50-100um in 10 um-increments

2) Trimming section range :0-500um

3) Horizontal specimen stroke :28 mm

4) Vertical specimen stroke : 60mm

5) specimen retraction :12um

6) Slip precision: ± 5%

7) Maximal slice section: 50 × 45mm

8) Dimension : 520 x 450 x 300mm

2.Essential Features:

1)It adopted the advanced import actuation system so that can slice the tissues more precisely ,more reliable  and quiet.

2)The LCD display show the slice and trimming thickness ,section counter in Chinese or English version.

3)It have special function of sample retraction  .it can avoid the damage due to the attrition between sample and the back of knife so that the slice is more smooth and the life of the knife is more longer .

4) The hand wheel can be locked in any position to make the section as safe and convenient as possible

5)the waste bath can be disassembled easily

6) It has  safety alarm system
