Product name: | JK-PLT-30 Plate Load Tester |
| Model: | JK-PLT-30 | |
| NO: | 240126 | |
| Price(FOB): | us$550 Order Order Contract Template | |
| Related Products: | ||
|
450*350*120 Injection test mold 100mm Cube moulds for concrete 150mm Cube moulds for concrete 40*40*40 Cement test mold |
||
| Detailed |

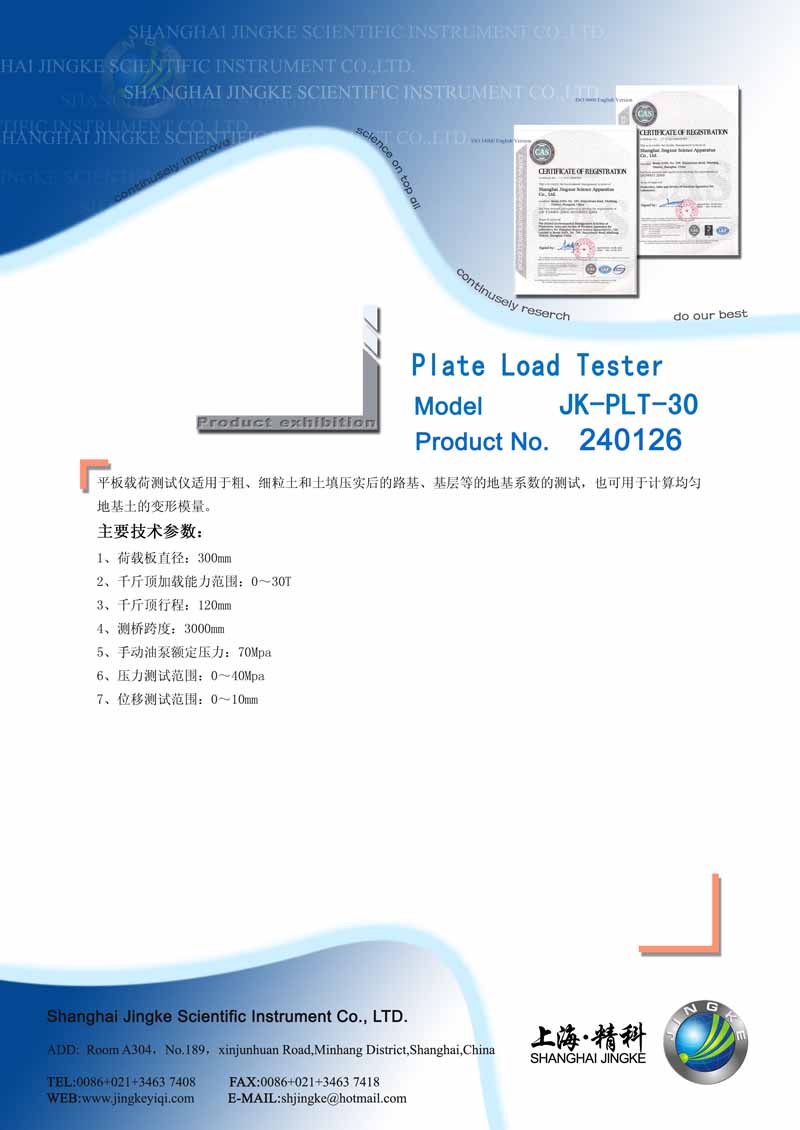

The plate load tester can measure foundation coefficient of thick or fine-grained soil and the foundation coefficient of ramming roadbed and substratum,etc.,as well as deformation modulus of uniform foundation soil Main technical parameters 1.Diameter of load plate：300mm 2.Loading capacity range of lifting jack: 0 ~ 30T 3.Route of lifting jack：120mm 4.Bridge span: 3000mm 5.Rated pressure of manual oil pump：70Mpa 6.Pressure range：0～40Mpa 7.Displacement range: 0～10mm
|
