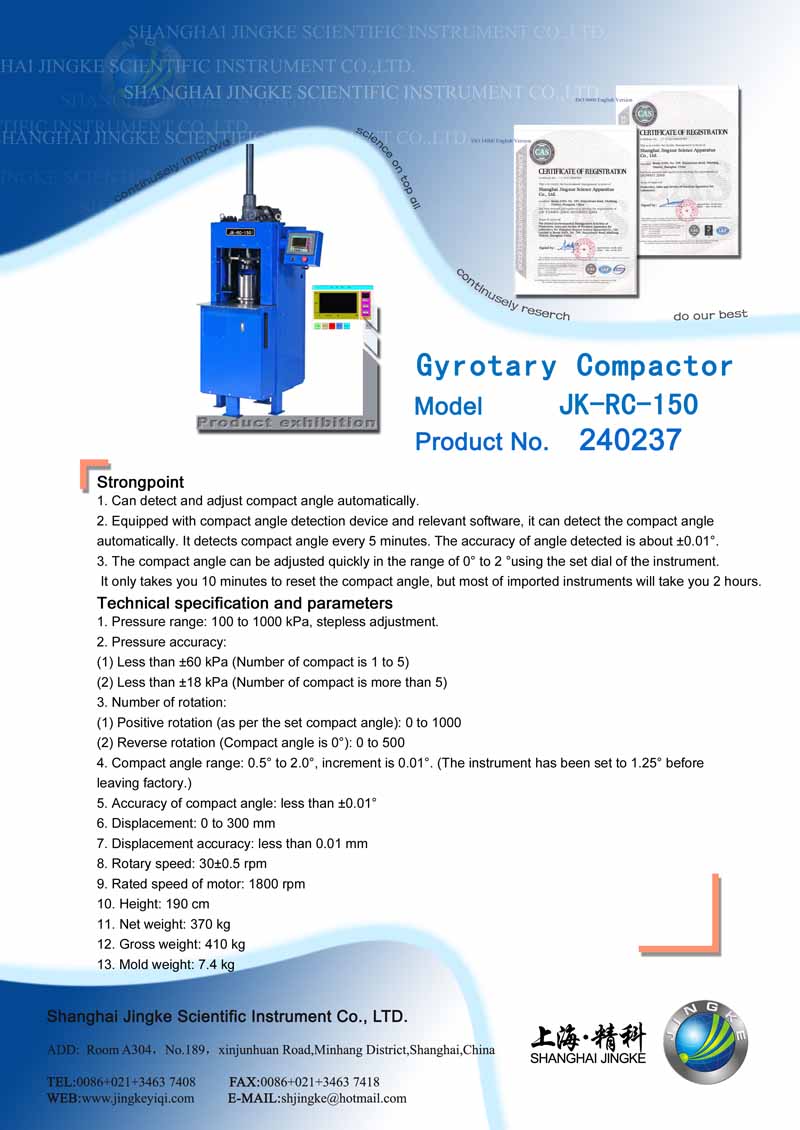

Product name: | JK-RC-150 Rotatory Compactor |
| Model: | JK-RC-150 | |
| NO: | 240237 | |
| Price(FOB): | us$64500 Order Order Contract Template | |
| Related Products: | ||
|
JK-DBCP-1D Detection System for Borehole of Concrete Pile JK-EADT-17 Distillation residue of emulsified asphalt tester JK-LWRT-55 Load Wheel Rolling Tester JK-EACT-51 Emulsified Asphalt Consistency Tester |
||
| Detailed |
1. The instrument is made as per SPERPAVE Standard issued by FHWA of American. It can work smoothly under stipulated pressure and rotary angle. 2. Take PLC of the siemens company as core of controlling system, so it has perfect protection function. It can work normally under severe condition. 3. Adopt an 8-inch touch screen as a table for man-machine communication, it is intuitive. What’s more, it is easy to set test parameter and it can show test data real time. For example, number of rotation, pressure, displacement, changing curve of density, etc. 4. It has a communication port to connect a computer. You can download test data to a computer and save or print test data in the form of table or diagram using Excel. 5. The pressure device, sensor and converter motor are imported from abroad. 6. It is stable when it is used by our clients. Strongpoint 1. Can detect and adjust compact angle automatically. 2. Equipped with compact angle detection device and relevant software, it can detect the compact angle automatically. It detects compact angle every 5 minutes. The accuracy of angle detected is about ±0.01°. 3. The compact angle can be adjusted quickly in the range of 0° to 2 °using the set dial of the instrument. It only takes you 10 minutes to reset the compact angle, but most of imported instruments will take you 2 hours. Technical specification and parameters 1. Pressure range: 100 to 1000 kPa, stepless adjustment. 2. Pressure accuracy: (1) Less than ±60 kPa (Number of compact is 1 to 5) (2) Less than ±18 kPa (Number of compact is more than 5) 3. Number of rotation: (1) Positive rotation (as per the set compact angle): 0 to 1000 (2) Reverse rotation (Compact angle is 0°): 0 to 500 4. Compact angle range: 0.5° to 2.0°, increment is 0.01°. (The instrument has been set to 1.25° before leaving factory.) 5. Accuracy of compact angle: less than ±0.01° 6. Displacement: 0 to 7. Displacement accuracy: less than 8. Rotary speed: 30±0.5 rpm 9. Rated speed of motor: 1800 rpm 10. Height: 11. Net weight: 12. Gross weight: 13. Mold weight:
|
