View Large Image Product catalogue	Product name:	JK-WRV-2 Vacuum Pump

	Model:	JK-WRV-2

	NO:	150103

	Price(FOB):	US$242 Order Order Contract Template

	Related Products:
		JK-2TW-4R type of new refrigerant special vacuum pump JK-2TW-2R type of new refrigerant special vacuum pump JK-2TW-1.5R type of new refrigerant special vacuum pump JK-2TW-1R type of new refrigerant special vacuum pump

Detailed

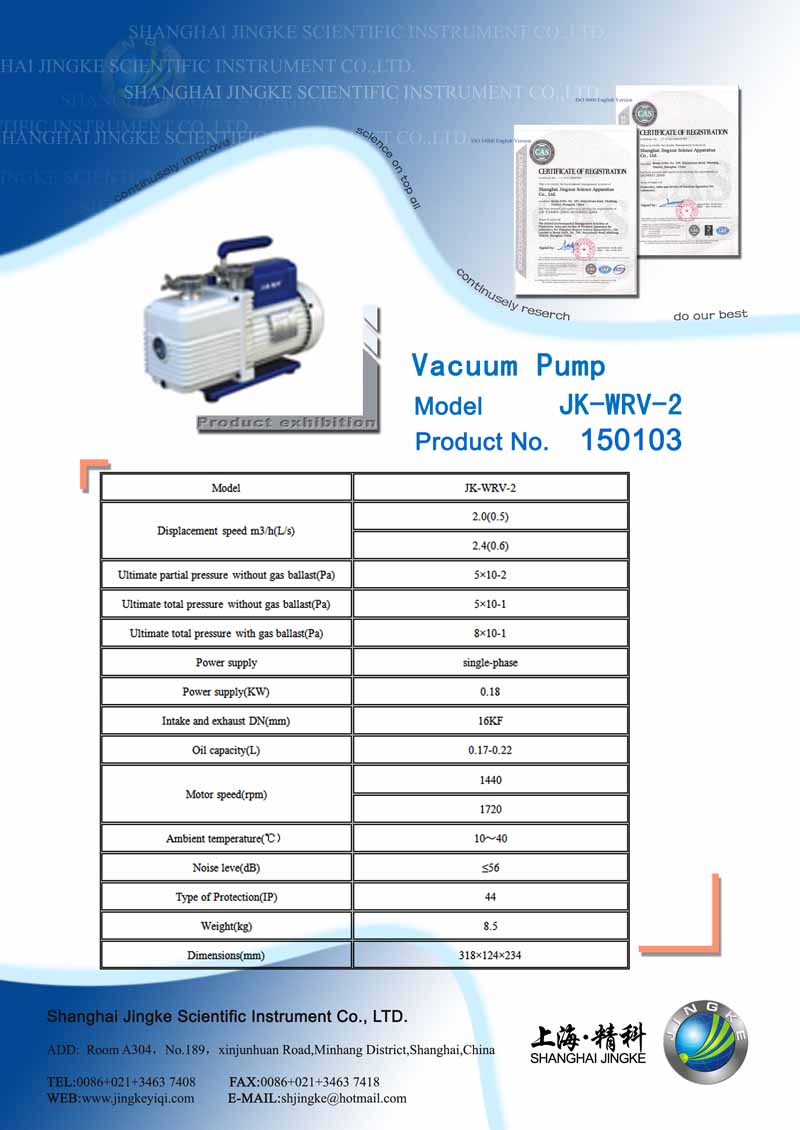

JK-WRV-2 Vacuum Pump

Technical parameters:

Model	JK-WRV-2
Displacement speed m3/h(L/s)	2.0(0.5)
Displacement speed m3/h(L/s)	2.4(0.6)
Ultimate partial pressure without gas ballast(Pa)	5×10-2
Ultimate total pressure without gas ballast(Pa)	5×10-1
Ultimate total pressure with gas ballast(Pa)	8×10-1
Power supply	single-phase
Power supply(KW)	0.18
Intake and exhaust DN(mm)	16KF
Oil capacity(L)	0.17-0.22
Motor speed(rpm)	1440
Motor speed(rpm)	1720
Ambient temperature(℃）	10～40
Noise leve(dB)	≤56
Type of Protection(IP)	44
Weight(kg)	8.5
Dimensions(mm)	318×124×234
