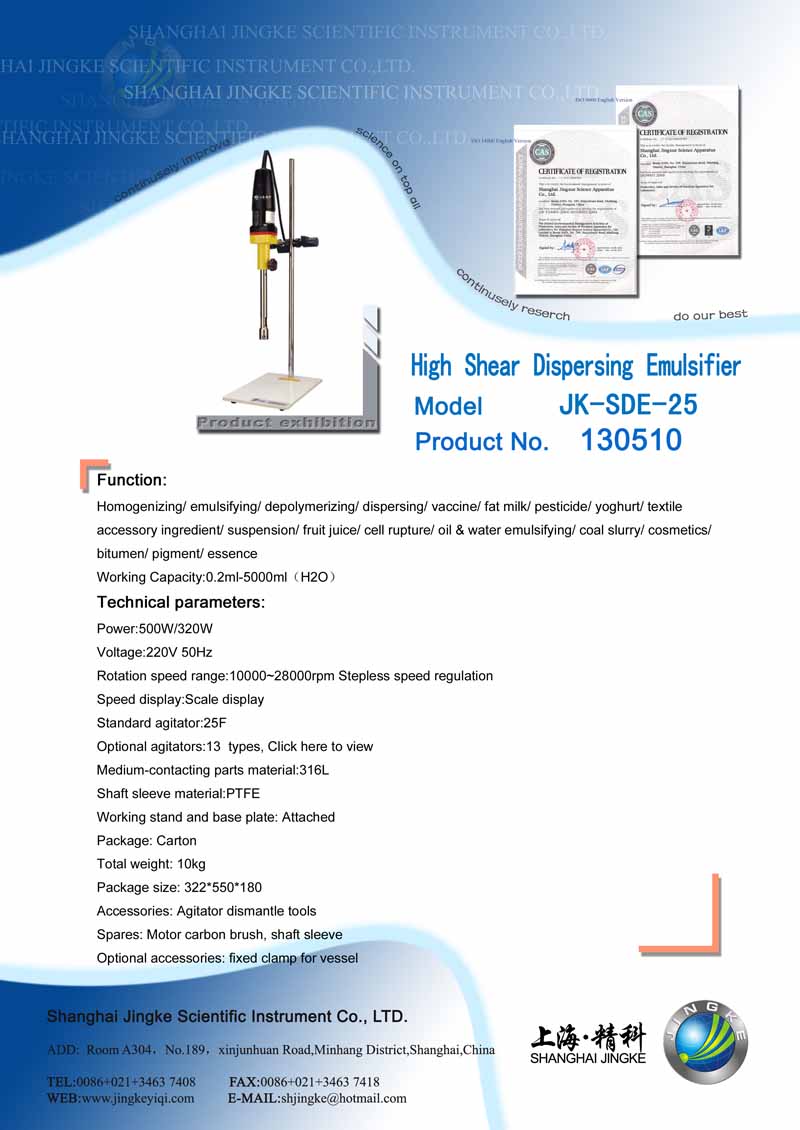

JK-SDE-25 High Shear Dispersing Emulsifier

Advantages:

1. German original motor, long service life and stable operation.
2. Stepless speed regulation, maximum Rotation speed: 28,000rpm,
   maximum Peripheral speed: 27m/s.
3. 13 different agitators for option to satisfy your different working environments (sealed, opened, normal pressure, vacuum).
4、Maximum working duration: 4 hours.
5、Double protective insulation to supply you the highest safety guard.
6、Stainless steel agitator, repeatedly usable.
7、Quick coupling agitator, easy to be dismantled and replaced.
8、Modular design, flexible combination.

Cases of application:

1、Oil & Water emulsifying
    Pour the water phase into the vessel, start up the equipment and regulate the Rotation speed to B stage above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.

2、Oil phase dispersing
    In the emulsifying process, the oil phase shall be proportioned at first before it is uniformly dispersed, and FA25 can satisfy a small batch fast proportioning.

Function:

Homogenizing/ emulsifying/ depolymerizing/ dispersing/ vaccine/ fat milk/ pesticide/ yoghurt/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Working Capacity:0.2ml-5000ml（H₂O）

Technical parameters:

Power:500W/320W
Voltage:220V 50Hz
Rotation speed range:10000~28000rpm Stepless speed regulation
Speed display:Scale display
Standard agitator:25F
Optional agitators:13  types, Click here to view
Medium-contacting parts material:316L
Shaft sleeve material:PTFE
Working stand and base plate: Attached
Package: Carton
Total weight: 10kg
Package size: 322*550*180
Accessories: Agitator dismantle tools
Spares: Motor carbon brush, shaft sleeve
Optional accessories: fixed clamp for vessel
