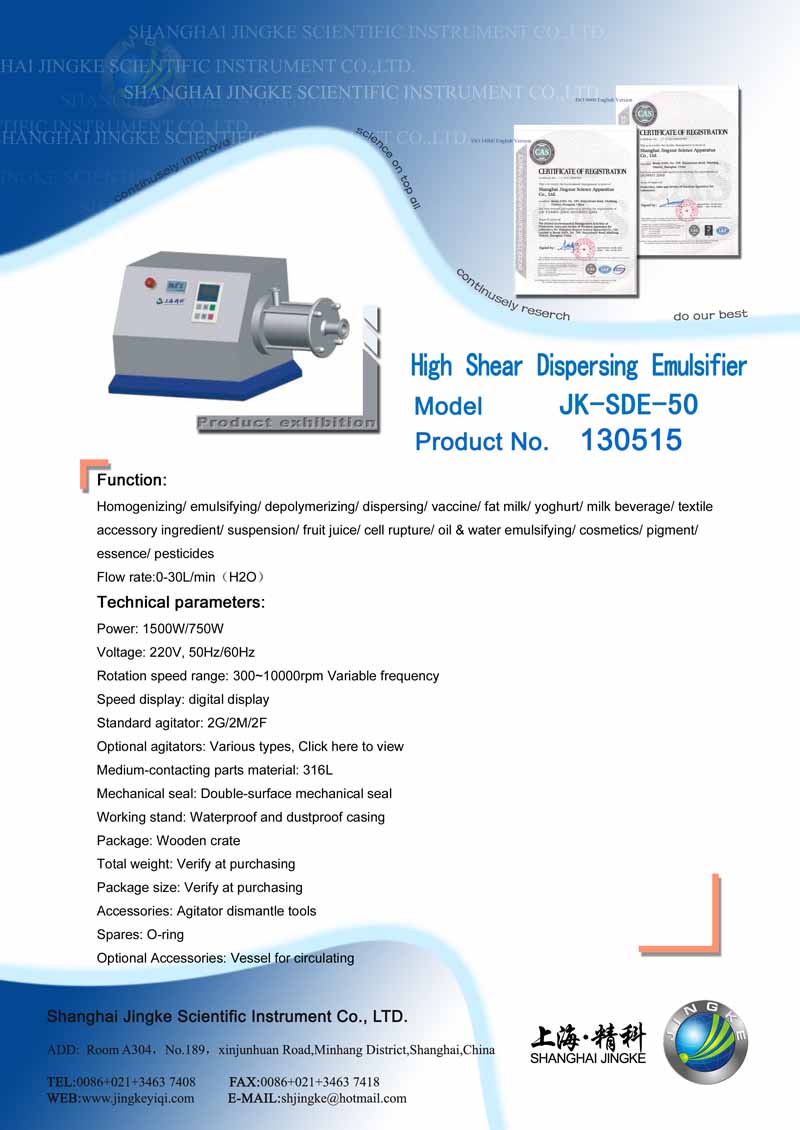

JK-SDE-50 High Shear Dispersing Emulsifier

Advantages:

1. Motor direct transmission, maximum speed: 10000rpm.
2. In-line process, the material can be sheared by the stator and the rotor in 100% so that it can be dispersed more evenly and emulsified more fully.
3. Modularized design, optional combination of agitator to satisfy more lab requirements.
4. It can supply continuous and small batch production.
5. Double protective insulation to supply you the highest safety guard.
6. Frequency converting Rotation speed control, stable and reliable.
7. Quick coupling dispersing head, easy to be dismantled and replaced.
8. Optional external Vessel and pipeline in systemic design.
Cases of application:

1. Medicine carried fat milk pre-emulsifying
Mix the water phase with the oil phase, and make them treated by FD40, and the stable emulsified liquid can be prepared after 30 minutes' circulating.
2. Pilot-plant experiment continuous production
In-line continuous production mode is generally applied in large scale production, and after it is succeeded in the lab, the scale can be expanded for industrialized trial production so as to obtain the comparison data.

Function:

Homogenizing/ emulsifying/ depolymerizing/ dispersing/ vaccine/ fat milk/ yoghurt/ milk beverage/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ cosmetics/ pigment/ essence/ pesticides
Flow rate:0-30L/min（H₂O）

Technical parameters:

Power: 1500W/750W
Voltage: 220V, 50Hz/60Hz
Rotation speed range: 300~10000rpm Variable frequency
Speed display: digital display
Standard agitator: 2G/2M/2F
Optional agitators: Various types, Click here to view
Medium-contacting parts material: 316L
Mechanical seal: Double-surface mechanical seal
Working stand: Waterproof and dustproof casing
Package: Wooden crate
Total weight: Verify at purchasing
Package size: Verify at purchasing
Accessories: Agitator dismantle tools
Spares: O-ring
Optional Accessories: Vessel for circulating
