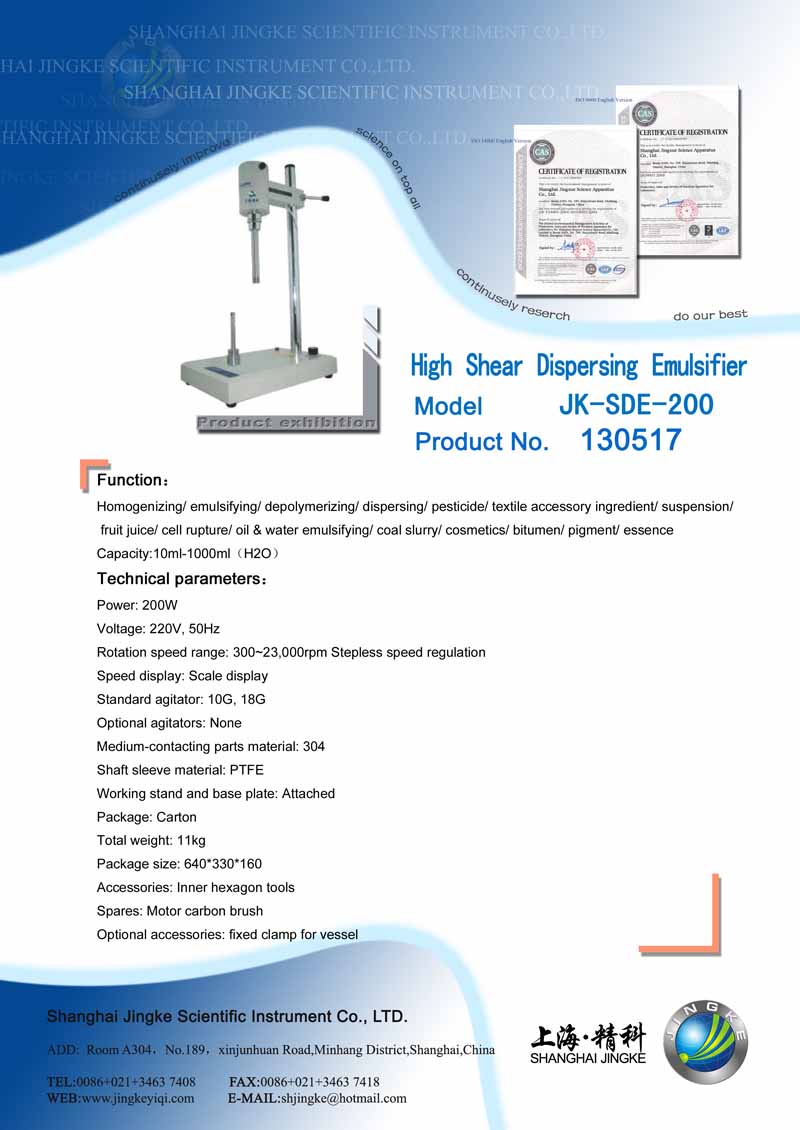

JK-SDE-200  High Shear Dispersing Emulsifier

Advantages：

1. Economical design, simple and practical, suitable for teaching, common experimenting, and non-sanitary working conditions.
2. Stepless speed regulation, maximum rotation speed : 23,000rpm.
3. Equipped with two different dispersing heads for different working capacities.
4. Maximum working duration: 1 hour.
5. Stainless steel dispersing head, repeatedly usable.
6. Quick coupling dispersing head, easy to be dismantled and replaced.
Cases of application:

1. Oil & Water emulsifying
Pour the water phase into the vessel, start up the equipment and regulate the rotation speed to B stage above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
2. Teaching experiment
E.g.: In the teaching experiment of cream preparation, the emulsification effect can be fully embodied, and thus the technical key points can be mastered by the students.
3. White titanium pigment dispersing
Start up the equipment and regulate the rotation speed to D stage, and disperse for more than 10 minutes.

Function：

Homogenizing/ emulsifying/ depolymerizing/ dispersing/ pesticide/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Capacity:10ml-1000ml（H₂O）

Technical parameters：

Power: 200W
Voltage: 220V, 50Hz
Rotation speed range: 300~23,000rpm Stepless speed regulation
Speed display: Scale display
Standard agitator: 10G, 18G
Optional agitators: None
Medium-contacting parts material: 304
Shaft sleeve material: PTFE
Working stand and base plate: Attached
Package: Carton
Total weight: 11kg
Package size: 640*330*160
Accessories: Inner hexagon tools
Spares: Motor carbon brush
Optional accessories: fixed clamp for vessel
