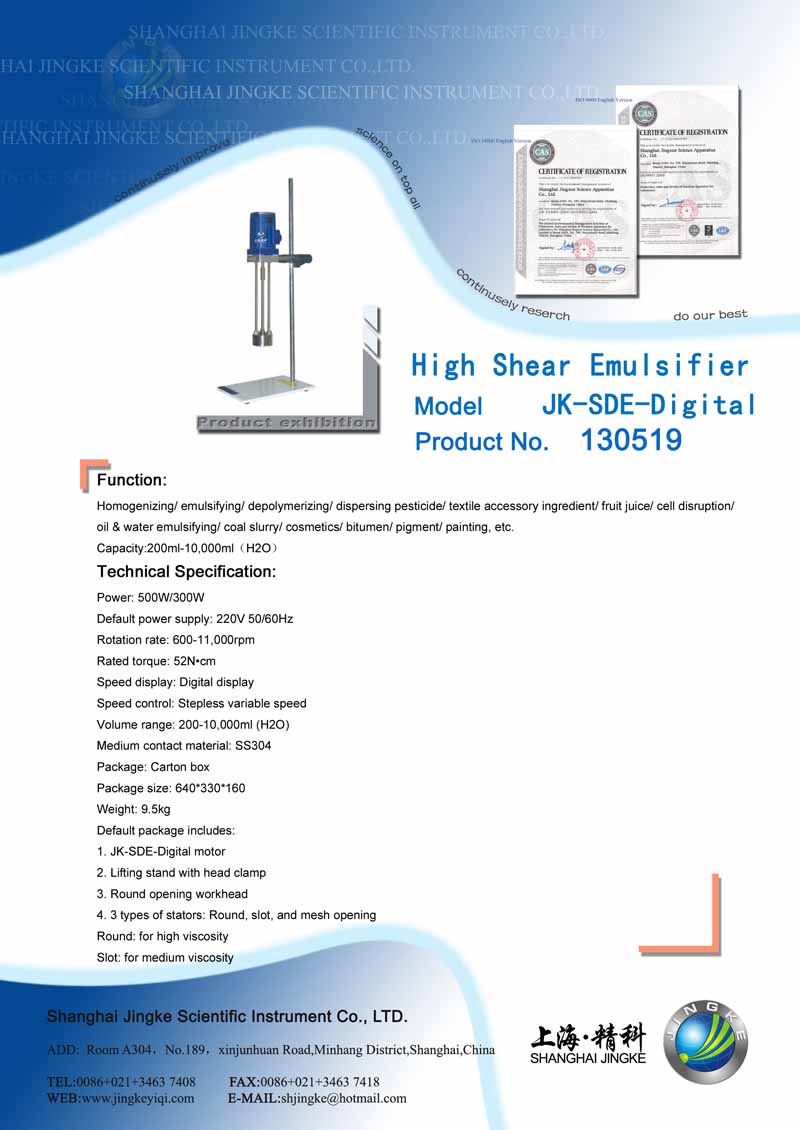

JK-SDE-Digital High Shear Emulsifier
Advantages：
1、Your cost-effective solution for emulsifying solution.
2、Digital display of the rotation rate to offer records for experiments.
3、Super high torque motor to be able to satisfy medium and high viscosity requirement
4、Low noise, long continuous duty time.
5、Overload cut-off protection
6、Special engineered workhead and stator/rotor to provide good result.
7、Three types of interchangeable stators for different viscosities; they are easy to change, clean and sterilization.
8. Max. permissible temp. up to 180℃
Cases of application：
1、Oil & Water emulsifying
Pour the water phase into the vessel, start up the equipment and regulate the rotation speed to 8000rpm or above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
2、Bitumen modification emulsifying
Fm300-Digitalcan resist a high temperature of 180℃, and thus it can be used to treat bitumen and those high temperature materials.
3、White titanium pigment dispersing
Start up the equipment and regulate the rotation speed to 10,000rpm, and disperse for more than 10 minutes.
Function:
Homogenizing/ emulsifying/ depolymerizing/ dispersing pesticide/ textile accessory ingredient/ fruit juice/ cell disruption/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ painting, etc.
Capacity:200ml-10,000ml（H2O）
Technical Specification:
Power: 500W/300W
Default power supply: 220V 50/60Hz
Rotation rate: 600-11,000rpm
Rated torque: 52N•cm
Speed display: Digital display
Speed control: Stepless variable speed
Volume range: 200-10,000ml (H2O)
Medium contact material: SS304
Package: Carton box
Package size: 640*330*160
Weight: 9.5kg
Default package includes:
1. JK-SDE-Digital motor
2. Lifting stand with head clamp
3. Round opening workhead
4. 3 types of stators: Round, slot, and mesh opening
Round: for high viscosity
Slot: for medium viscosity
|
