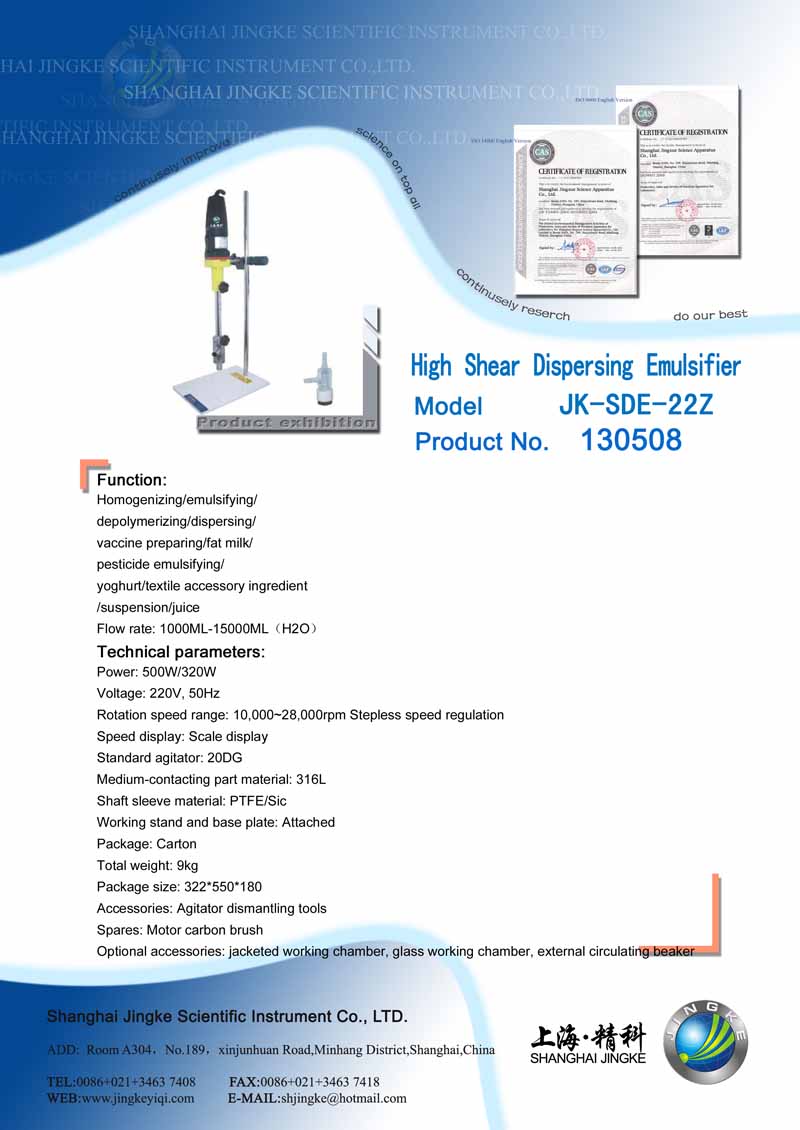

JK-SDE-22Z High Shear Dispersing Emulsifier
Advantages:
1. German original motor, maximum rotation speed: 28,000rpm
2. In-line process, the material can be sheared by the stator and the rotor in 100% so that it can be dispersed more uniformly and emulsified more fully.
3. Integrated speed regulation switch, humanized operation.
4. It can be used to simulate the industrialized production for technical research.
5. Double protective insulation to supply you the highest safety guard.
6. Stainless steel dispersing head, repeatedly usable.
7. Quick coupling dispersing head, easy to be dismantled and replaced.
8. A glass working chamber can be equipped optionally for monitoring the working process.
Cases of application:
1. Oil & Water In-line homogenizing and emulsifying
Separately meter a required amount of oil and water, and pump them into F22Z at the same time, switch the rotation speed to Stage F, after they are completely added, make them circulate for 5min more to produce the final stable emulsion. (In the precondition that the formula is correct)
2. Simulating the industrialized production
A large-scale industrial production is often carried on by the mode of on-line continuous production while a batch experiment is often taken in the lab, as there is a risk if the experimental technique is applied in industrial production, F22Z can be used to simulate the industrialized production, and the experimental parameters can be used to guide the practical production.
Function:
Homogenizing/emulsifying/
depolymerizing/dispersing/
vaccine preparing/fat milk/
pesticide emulsifying/
yoghurt/textile accessory ingredient
/suspension/juice
Flow rate: 1000ML-15000ML（H2O）
Technical parameters:
Power: 500W/320W
Voltage: 220V, 50Hz
Rotation speed range: 10,000~28,000rpm Stepless speed regulation
Speed display: Scale display
Standard agitator: 20DG
Medium-contacting part material: 316L
Shaft sleeve material: PTFE/Sic
Working stand and base plate: Attached
Package: Carton
Total weight: 9kg
Package size: 322*550*180
Accessories: Agitator dismantling tools
Spares: Motor carbon brush
Optional accessories: jacketed working chamber, glass working chamber, external circulating beaker
|
