Product name: | JK-VS-721N Visiable Spectrophotometer |
| Model: | JK-VS-721N | |
| NO: | 010102 | |
| Price(FOB): | US$289 Order Order Contract Template | |
| Related Products: | ||
|
JK-VS-723N Visiable Spectrophotometer JK-VS-723A Visiable Spectrophotometer JK-VS-7230G Visiable Spectrophotometer JK-VS-S22PC Visible Spectrophotometer |
||
| Detailed |

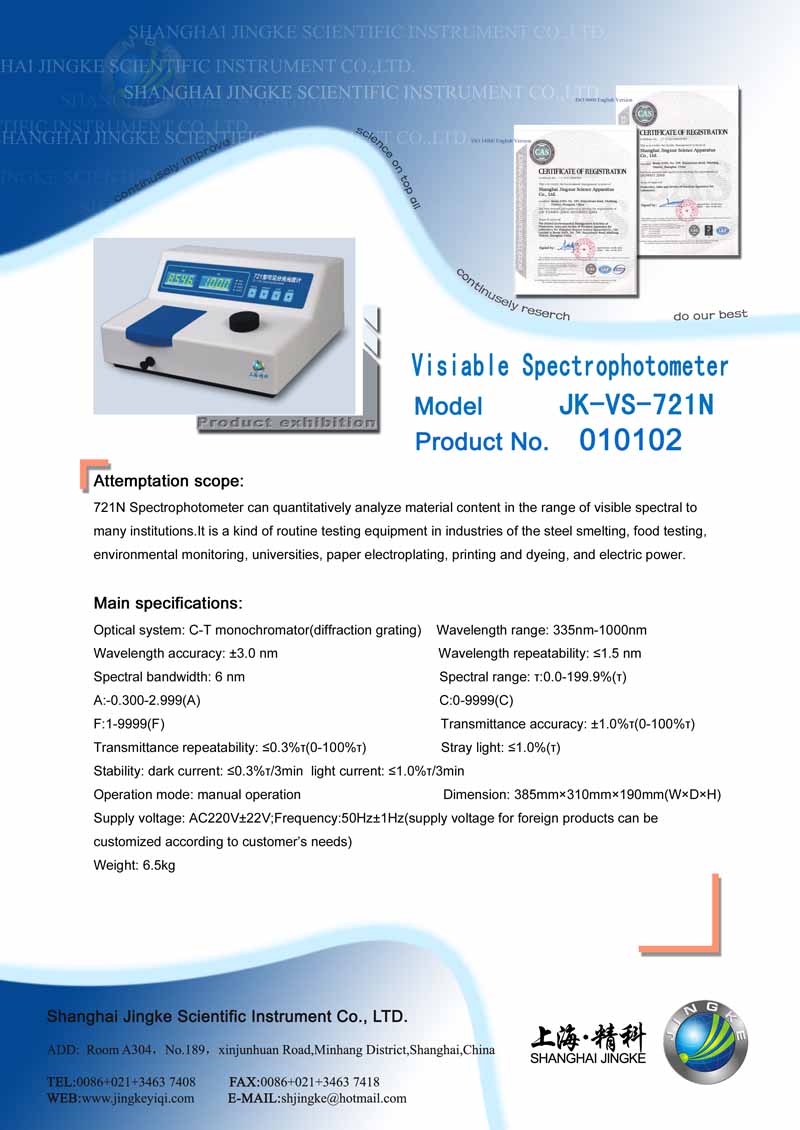

JK-VS-721N Visiable Spectrophotometer Attemptation scope:
721N Spectrophotometer can quantitatively analyze material content in the range of visible spectral to many institutions.It is a kind of routine testing equipment in industries of the steel smelting, food testing, environmental monitoring, universities, paper electroplating, printing and dyeing, and electric power.
Characteristics:
Wavelength range ( 335-1000) nm, wildly used.
Built-in Single-Chip coumputer, high automaticity instrument, automaticly adjust 0%(τ), automaticly adjust 100%(τ) and zero tolerance τ-A switching, more handy than the original 721 model.
LED digital display
4 modes of measurement: transmittance(τ), absorbance(A), direct reading of concentration(C) and confficient determination(F), completely comply with testing requests.
Advanced optical system,superior C-T model monochromator’s beamsplitter highly optimize these indexs :resolution, photometric accuracy, stray light.
Appropriative precision presetting lamp or a lamp holder. Our users don’t need to readjust light path when changing the lamp. It will be more handy for our users.
Sample room is made of special engineering plastic bearing solvent and strong sour alkali. In the bottom side installed a removable a container for liquid to meet needs of some of our users.
Staphylococcus tetragenus , 10-50 mm cuvette can be used
Insulated plastic shell, small volume, light in weight, good figure.
Main specifications:
Optical system: C-T monochromator(diffraction grating)
Wavelength range: 335nm-1000nm
Wavelength accuracy: ±3.0 nm
Wavelength repeatability: ≤1.5 nm
Spectral bandwidth: 6 nm
Spectral range: τ:0.0-199.9%(τ)
A:-0.300-2.999(A) C:0-9999(C) F:1-9999(F) Transmittance accuracy: ±1.0%τ(0-100%τ)
Transmittance repeatability: ≤0.3%τ(0-100%τ)
Stray light: ≤1.0%(τ)
Stability: dark current: ≤0.3%τ/3min light current: ≤1.0%τ/3min
Operation mode: manual operation
Dimension: 385mm×310mm×190mm(W×D×H)
Supply voltage: AC220V±22V;Frequency:50Hz±1Hz(supply voltage for foreign products can be customized according to customer’s needs)
Weight: 6.5kg
THIS PRODUCT CAN BE OEM
Has been assessed and registered as meeting the requirements of ISO9001:2008
Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004
China’s quality reliable products
Chinese famous brand.
|
