Product name: | JK-VS-723N Visiable Spectrophotometer |
| Model: | JK-VS-723N | |
| NO: | 010113 | |
| Price(FOB): | US$1021 Order Order Contract Template | |
| Related Products: | ||
|
JK-VS-723A Visiable Spectrophotometer JK-VS-7230G Visiable Spectrophotometer JK-VS-S22PC Visible Spectrophotometer JK-VS-S22 and JK-VS-S22PC Visible Spectrophotometer |
||
| Detailed |

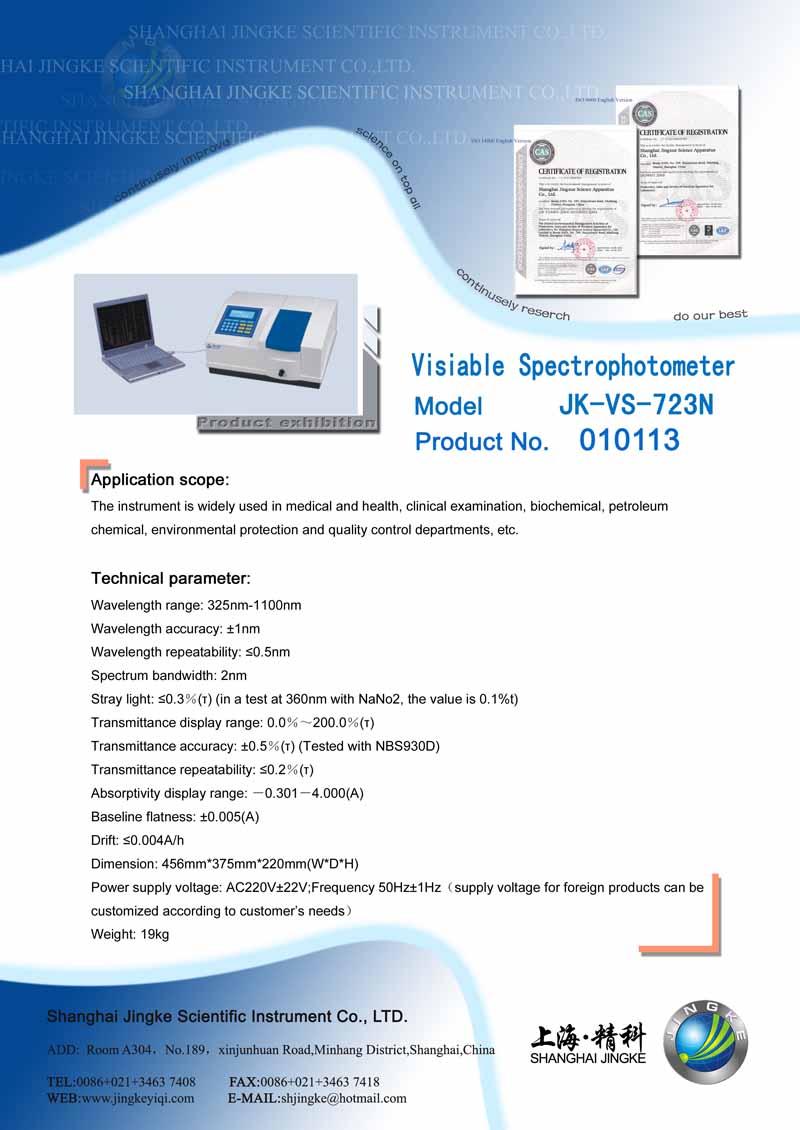

JK-VS-723N Visiable Spectrophotometer Application scope: The instrument is widely used in medical and health, clinical examination, biochemical, petroleum chemical, environmental protection and quality control departments, etc. Characteristics: LCD graphic display clearly showing the testing results and the prompt of operation process externally linked to a thermal sensitive printer printing out the testing results and process and store data. There are three testing modes: photometer mode, wavelength scanning, quantitative analysis in which there are three analytical methods: coefficient input, one point method and multi-points underdetermination,dynamic analysis and multiwavelength testing mode Special cuvette pairing function be able to eliminate measurement error from cuvette pairing ( available in photometer mode and quantitative analysis only) Automatic zero setting / full scale set function High precision,good reproducibility and stability Stand for the different needs from our customers, choose different wavelength interval to sample 0.1nm/0.2nm、0.5nm/1nm/2nm/4nm. Technical parameter: Wavelength range: 325nm-1100nm Wavelength accuracy: ±1nm Wavelength repeatability: ≤0.5nm Spectrum bandwidth: 2nm Stray light: ≤0.3％(τ) (in a test at 360nm with NaNo2, the value is 0.1%t) Transmittance display range: 0.0％～200.0％(τ) Transmittance accuracy: ±0.5％(τ) (Tested with NBS930D) Transmittance repeatability: ≤0.2％(τ) Absorptivity display range: －0.301－4.000(A) Baseline flatness: ±0.005(A) Drift: ≤0.004A/h Dimension: 456mm*375mm*220mm(W*D*H) Power supply voltage: AC220V±22V;Frequency 50Hz±1Hz（supply voltage for foreign products can be customized according to customer’s needs） Weight: 19kg THIS PRODUCT CAN BE OEM Has been assessed and registered as meeting the requirements of ISO9001:2008 Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004 China`s quality reliable products Chinese famous brand.
|
