Product name: | JK-VS-S23A Visiable Spectrophotometer |
| Model: | JK-VS-S23A | |
| NO: | 010108 | |
| Price(FOB): | US$489 Order Order Contract Template | |
| Related Products: | ||
|
JK-VS-723N Visiable Spectrophotometer JK-VS-723A Visiable Spectrophotometer JK-VS-7230G Visiable Spectrophotometer JK-VS-S22PC Visible Spectrophotometer |
||
| Detailed |

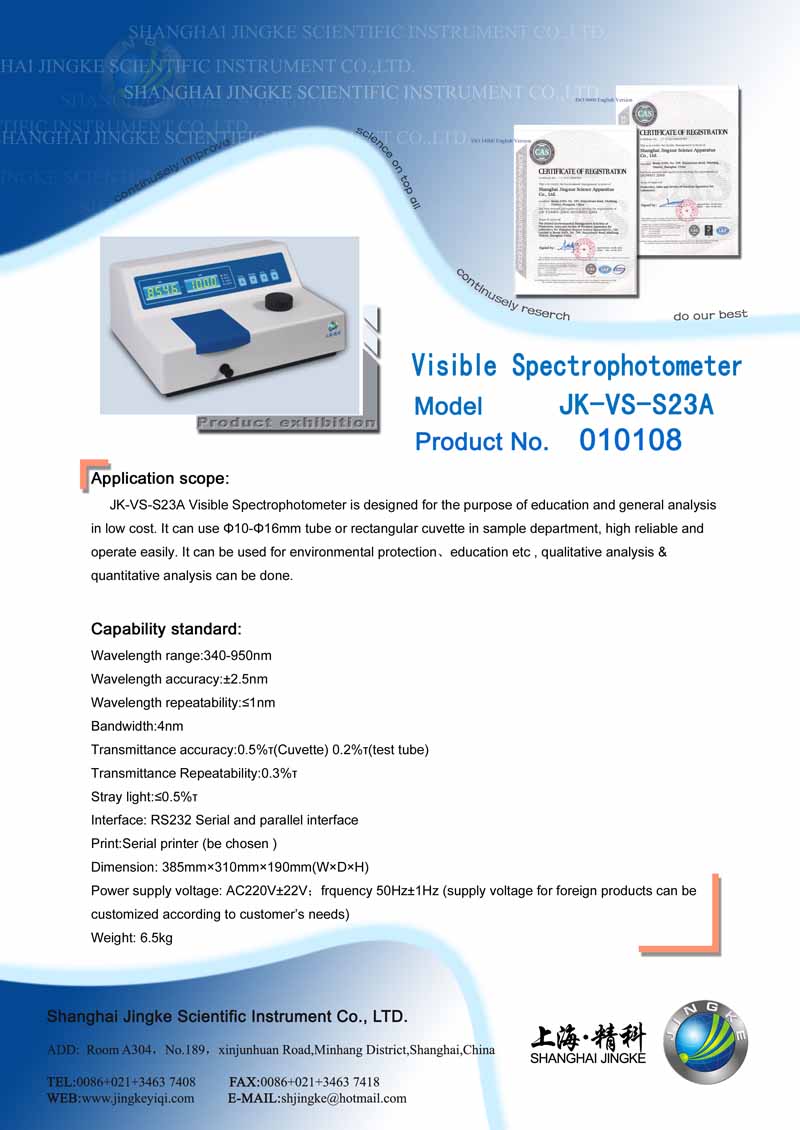

JK-VS-S23A Visiable Spectrophotometer Application scope:
Model S23A Visible Spectrophotometer is designed for the purpose of education and general analysis in low cost. It can use Φ10-Φ16mm tube or rectangular cuvette in sample department, high reliable and operate easily. It can be used for environmental protection、education etc , qualitative analysis & quantitative analysis can be done.
Characteristics:
CT monochromator, precision grating and non-spherical mirror; aluminum alloy die-casting engine base and machine parts;
Pre-calibrated light source and the spectral energy correction system;
Manually adjust wavelength, computer measurement system, accurate T/A conversion, automatic transfer 0% and 100%, directly read the concentration, concentration set
Test tube, cuvette dual-use for institutions of higher learning, secondary specialized institutions and teaching experiment of the chemical analysis
Option is special data processing software package to perform data storage, recording, tansmission, and linear regression or serial printer to print test data.
Capability standard:
Wavelength range:340-950nm
Wavelength accuracy:±2.5nm
Wavelength repeatability:≤1nm
Bandwidth:4nm
Transmittance accuracy:0.5%τ(Cuvette) 0.2%τ(test tube)
Transmittance Repeatability:0.3%τ
Stray light:≤0.5%τ
Interface: RS232 Serial and parallel interface
Print:Serial printer (be chosen )
Dimension: 385mm×310mm×190mm(W×D×H)
Power supply voltage: AC220V±22V；frquency 50Hz±1Hz (supply voltage for foreign products can be customized according to customer’s needs)
Weight: 6.5kg
THIS PRODUCT CAN BE OEM
Has been assessed and registered as meeting the requirements of ISO9001:2008
Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004
China’s quality reliable products
Chinese famous brand.
|
