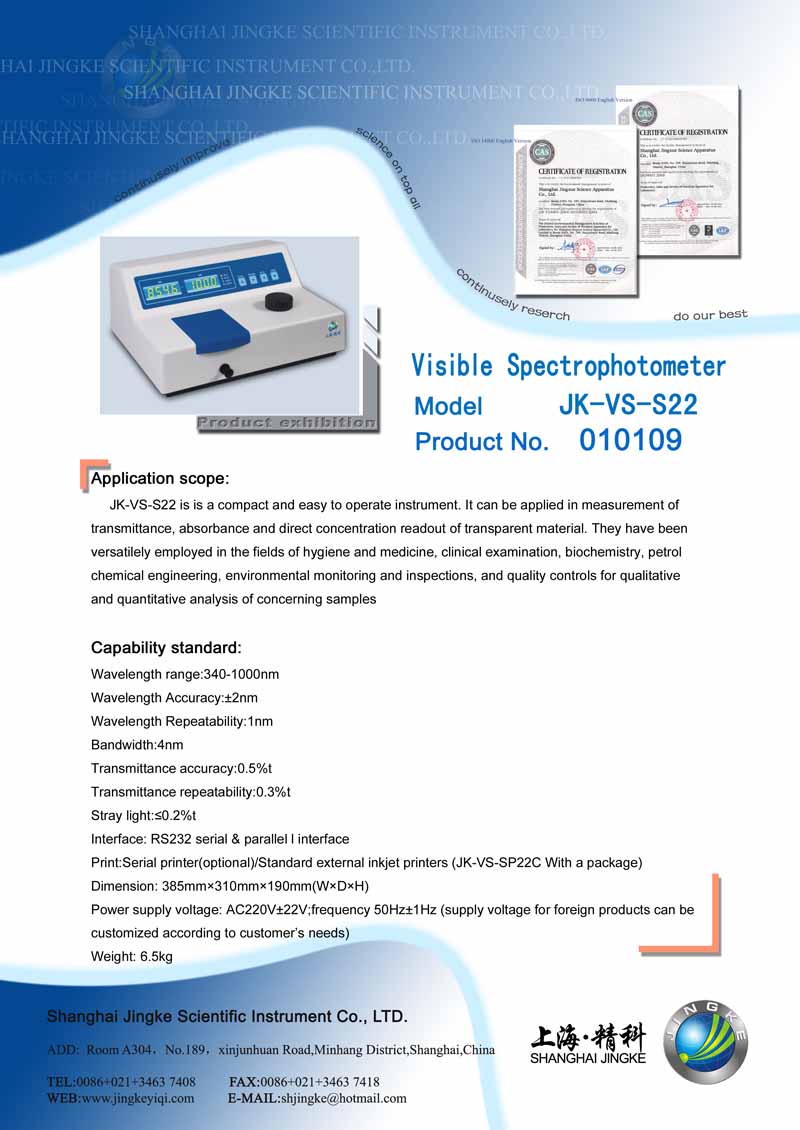

JK-VS-S22 and JK-VS-S22PC Visible Spectrophotometer

Application scope:

S22PC is is a compact and easy to operate instrument. It can be applied in measurement of transmittance, absorbance and direct concentration readout of transparent material. They have been versatilely employed in the fields of hygiene and medicine, clinical examination, biochemistry, petrol chemical engineering, environmental monitoring and inspections, and quality controls for qualitative and quantitative analysis of concerning samples

Characteristics:

CT monochromator, precision grating and non-spherical mirror; hybrid optical index better than the original S22 / 722s;

pre-calibrated light source and the spectral energy correction system;

Manually adjust wavelength, computer measurement system, accurate T/A conversion, automatic transfer 0% and 100%, directly read the concentration, concentration set

With a standard parallel printer port with optional external parallel printer; with RS232 serial interface with optional dedicated data-processing software package, when connecting with PC can store,record,transfer data and linear.

4 cuvette rack can be set in the sample room, a 1-5cm light path rectangular cuvette and 5cm cuvette holder is optional.

Capability standard:

Wavelength range:340-1000nm

Wavelength Accuracy:±2nm

Wavelength Repeatability:1nm

Bandwidth:4nm

Transmittance accuracy:0.5%t

Transmittance repeatability:0.3%t

Stray light:≤0.2%t

Interface: RS232 serial & parallel l interface

Print:Serial printer(optional)/Standard external inkjet printers (SP22C With a package)

Dimension: 385mm×310mm×190mm(W×D×H)

Power supply voltage: AC220V±22V;frequency 50Hz±1Hz (supply voltage for foreign products can be customized according to customer’s needs)

Weight: 6.5kg

THIS PRODUCT CAN BE OEM

Has been assessed and registered as meeting the requirements of ISO9001:2008

Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004

China’s quality reliable products

Chinese famous brand.
